Fascia Assembly - Rear (HW3) - Remove And Replace: Install

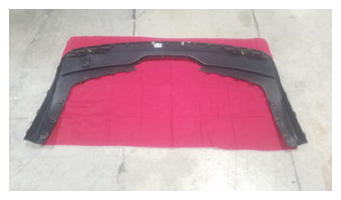

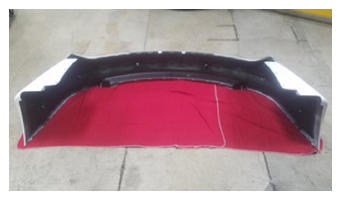

  1. Place the new rear fascia assembly upside down on flat and protected surface.
    G15077374Courtesy of TESLA, INC.

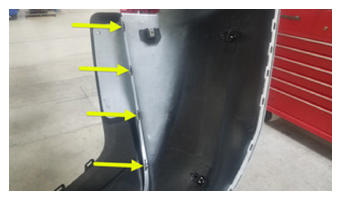

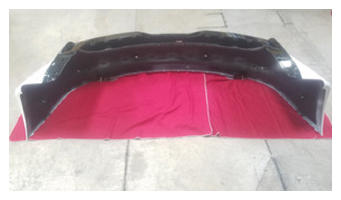

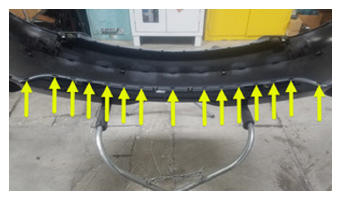

  2. Position the rear lower fascia onto the rear fascia assembly, and then secure the tabs (x23) that attach the lower fascia to the assembly.
    G15077375Courtesy of TESLA, INC.
    G15077376Courtesy of TESLA, INC.
    G15077377Courtesy of TESLA, INC.
    G15077378Courtesy of TESLA, INC.

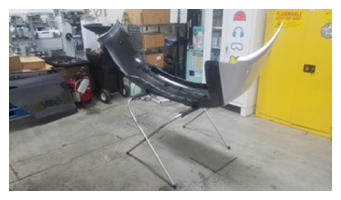

  3. Place the rear fascia assembly upright on the workbench.
    G15077379Courtesy of TESLA, INC.

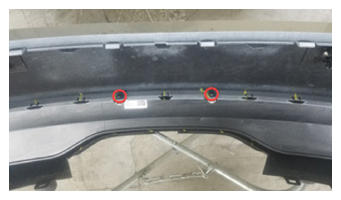

  4. Install the bolts that attach the rear lower fascia to the rear fascia assembly.

    Torque 5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G15077380Courtesy of TESLA, INC.

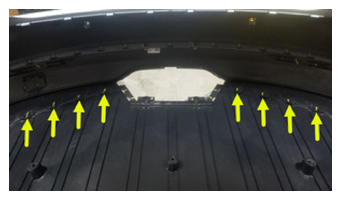

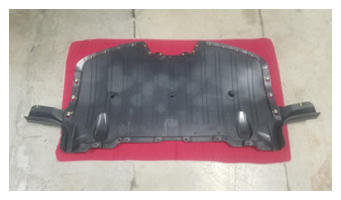

  5. Position the rear diffuser onto rear fascia assembly, and then secure the tabs (x8) that attach the diffuser to the fascia.
    G15077381Courtesy of TESLA, INC.
    G15077382Courtesy of TESLA, INC.

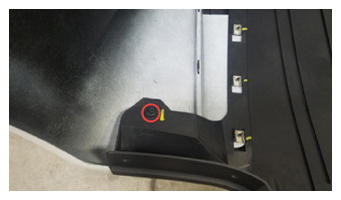

  6. Install the top LH and RH bolts that attach the rear diffuser to the rear fascia assembly.

    Torque 5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G15077383Courtesy of TESLA, INC.

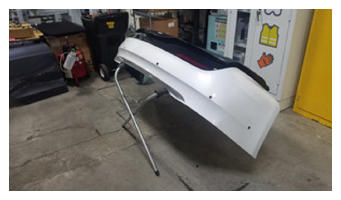

  7. Place the rear fascia assembly upside down on workbench.
    G15077384Courtesy of TESLA, INC.

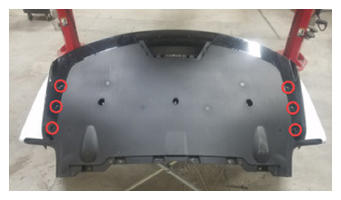

  8. Install the bottom bolts (x6) that attach the rear diffuser to the rear fascia assembly.

    Torque 5 N.m

    Tip: Use of the following tool(s) is recommended:

    • 10 mm deep socket
    • Flex head ratchet/flex head torque wrench
    G15077385Courtesy of TESLA, INC.

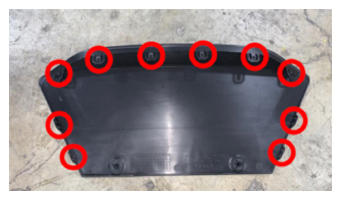

  9. Position the tow hitch cover onto the rear fascia assembly, and then secure the tabs (x10) that attach the cover to the fascia.
    G15077386Courtesy of TESLA, INC.

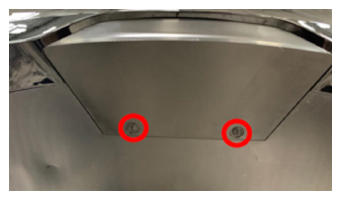

  10. Install the bolts that attach the tow hitch cover to the rear fascia.

    Tip: Use of the following tool(s) is recommended:

    • Large flathead screwdriver
    G15077387Courtesy of TESLA, INC.

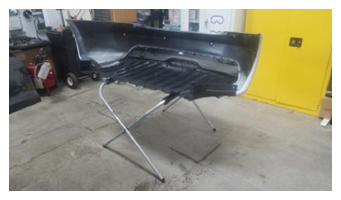

  11. Place the rear fascia assembly upright on workbench.
    G15077388Courtesy of TESLA, INC.

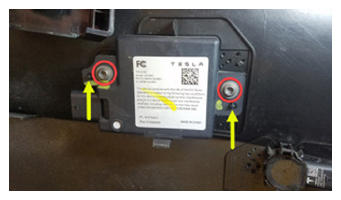

  12. Position the RH rear BLE assembly onto the rear fascia, and then install the screws that attach the BLE assembly to the fascia. Repeat this step for the LH BLE assembly.

    Torque 3 N.m

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • Flex head ratchet/flex head torque wrench
    • 4 in extension
    G15077389Courtesy of TESLA, INC.

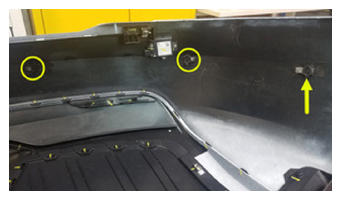

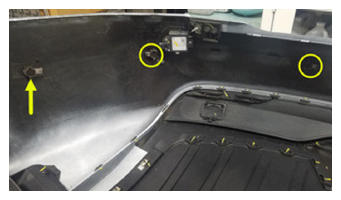

  13. Install the parking sensors (x6) onto the rear fascia assembly.

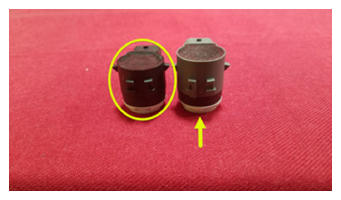

    NOTE: Sensors S7 and S12 (arrowed in image) are different from S8-S11 (circled in image).
    G15077390Courtesy of TESLA, INC.
    G15077391Courtesy of TESLA, INC.
    G15077392Courtesy of TESLA, INC.

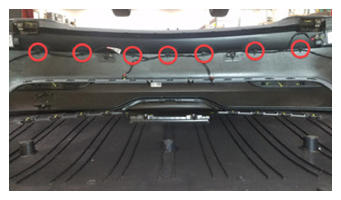

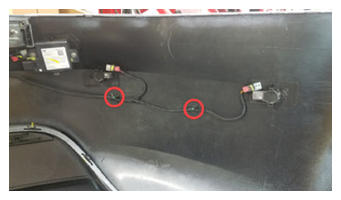

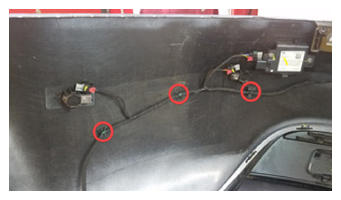

  14. Position the wiring harness onto the rear fascia assembly, and then install the clips (x8) and adhesive pads (x4) that attach the harness to the fascia.
    G15077393Courtesy of TESLA, INC.
    G15077394Courtesy of TESLA, INC.
    G15077395Courtesy of TESLA, INC.

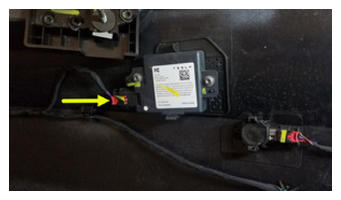

  15. Connect the RH rear BLE assembly electrical connector, and then engage the connector lock. Repeat this step for the LH rear BLE assembly.
    G15077396Courtesy of TESLA, INC.

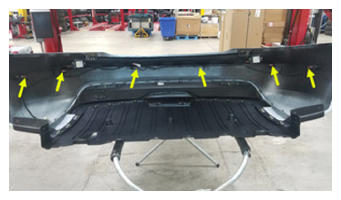

  16. Connect the rear parking sensor electrical connectors (x6), and then engage the connector locks.
    G15077397Courtesy of TESLA, INC.
  17. Install the rear fascia assembly. See Fascia Assembly - Rear (Remove And Install) .
