Light - Fog - Front - LH - Remove And Replace: Replace

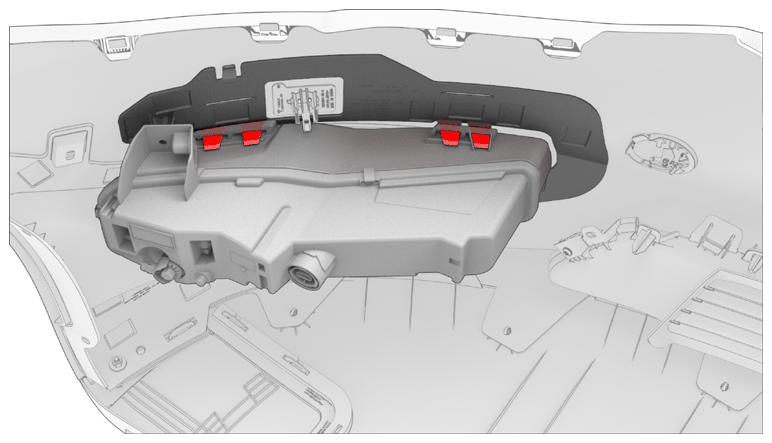

  1. Position the fog light on the front fascia assembly, and then install the four clips that attach the fog light to the front fascia assembly.
    G15092406Courtesy of TESLA, INC.

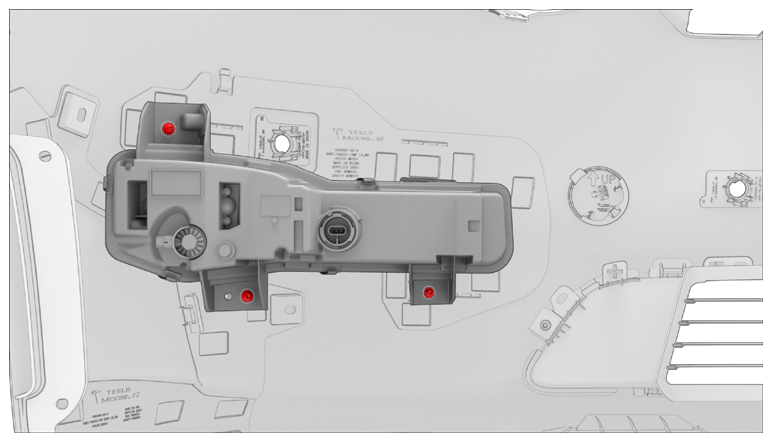

  2. Install the three screws that attach the fog light to the front fascia assembly.

    2.8 N.m (2.1 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T25 socket
    • 4 in extension
    • Flex head ratchet/flex head torque wrench
    G15092407Courtesy of TESLA, INC.
  3. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install) .
