Trim - Middle - Instrument Panel - LH - Remove And Replace: Install

  1. Secure the clips (x6) that attach the LH instrument panel middle panel to the instrument panel.

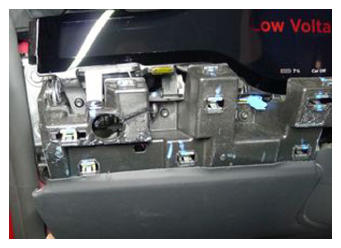

    G15084147Courtesy of TESLA, INC.

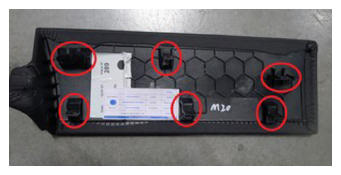

    G15084148Courtesy of TESLA, INC.

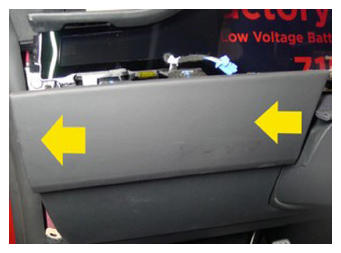

    G15084149Courtesy of TESLA, INC.
  2. Install the LH instrument panel end cap. See End Cap - Instrument Panel - LH (Remove And Replace) .
  3. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
