Remove And Replace

  1. Open LH front door
  2. Lower LH and RH front windows

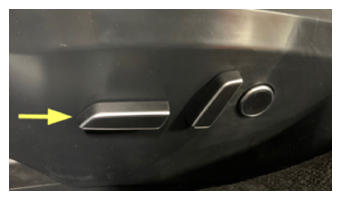

  3. Move LH front seat backward
    G15083876Courtesy of TESLA, INC.

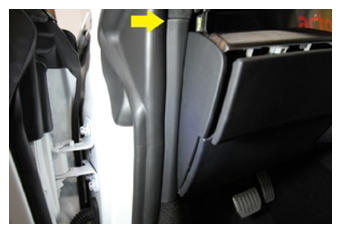

  4. Remove LH mid A-pillar trim
    NOTE: 1x clip, 2x tabs
    G15083877Courtesy of TESLA, INC.
    G15083878Courtesy of TESLA, INC.

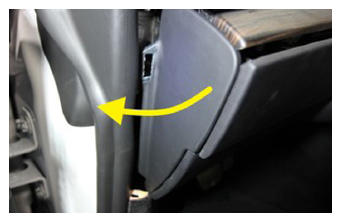

  5. Remove LH IP end cap
    NOTE: 4x clips
    G15083879Courtesy of TESLA, INC.
    G15083880Courtesy of TESLA, INC.
  6. Adjust steering column fully rearward and fully down
    NOTE: Via UI > Quick Controls > Steering Wheel, Use left steering wheel scroll wheel to adjust steering column
    G15083881Courtesy of TESLA, INC.

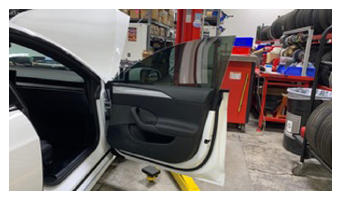

  7. Open RH front door
    G15083882Courtesy of TESLA, INC.

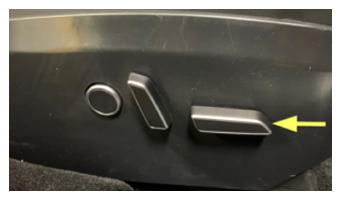

  8. Move RH front seat backward
    G15083883Courtesy of TESLA, INC.
  9. Remove RH mid A-pillar trim
    NOTE: 1x clip, 2x tabs
    G15083884Courtesy of TESLA, INC.
    G15083885Courtesy of TESLA, INC.

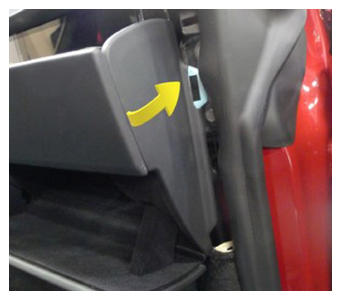

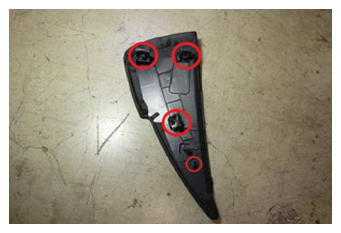

  10. Remove RH IP end cap
    NOTE: 4x clips
    G15083886Courtesy of TESLA, INC.
    G15083887Courtesy of TESLA, INC.

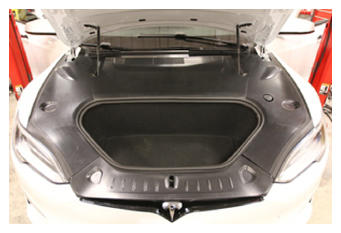

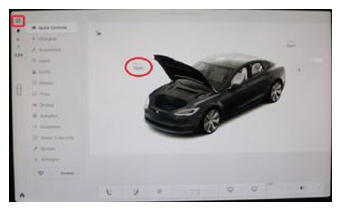

  11. Open hood
    NOTE: Using center display touchscreen > Quick Controls > Frunk Open
    G15083888Courtesy of TESLA, INC.
    G15083889Courtesy of TESLA, INC.

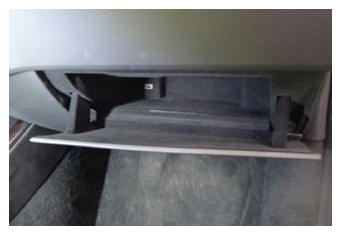

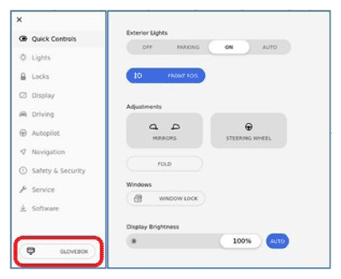

  12. Open glove box through UI
    NOTE: Via Controls > Glovebox
    G15083890Courtesy of TESLA, INC.
    G15083891Courtesy of TESLA, INC.
  13. Remove the touchscreen. See Touchscreen (Remove and Replace) .

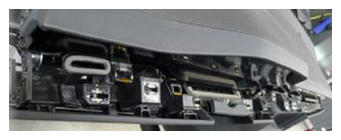

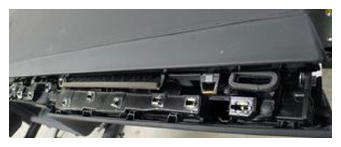

  14. Remove IP Decor
    NOTE: 15x clips, 6x datums
    G15083892Courtesy of TESLA, INC.
    G15083893Courtesy of TESLA, INC.
    G15083894Courtesy of TESLA, INC.
    G15083895Courtesy of TESLA, INC.

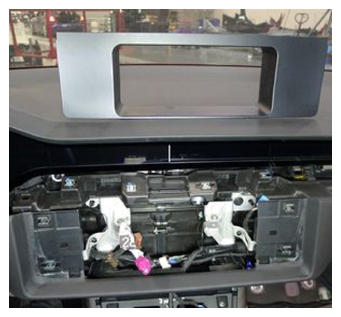

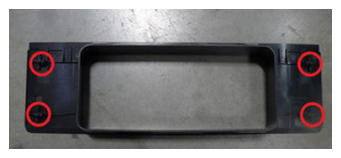

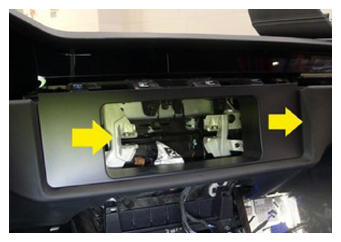

  15. Remove IP closeout panel
    NOTE: 4x tabs
    G15083896Courtesy of TESLA, INC.
    G15083897Courtesy of TESLA, INC.
    G15083898Courtesy of TESLA, INC.

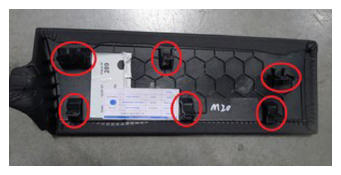

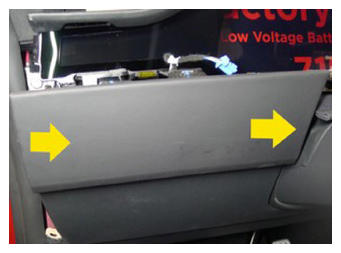

  16. Remove IP LH mid panel
    NOTE: 6x tabs
    G15083899Courtesy of TESLA, INC.
    G15083900Courtesy of TESLA, INC.

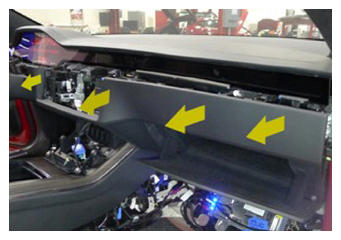

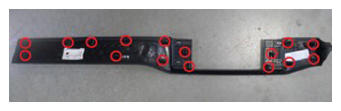

  17. Remove IP RH mid Panel
    NOTE: 14x tabs, 2 datums
    G15083901Courtesy of TESLA, INC.
    G15083902Courtesy of TESLA, INC.
  18. Remove RH footwell cover
    NOTE: 3x magnets, 1x connector
    G15083903Courtesy of TESLA, INC.
  19. Remove fasteners securing RH knee air bag assembly to vehicle
    NOTE: 2x patch bolts, E10, 8 N.m, Discard after removal
    G15083904Courtesy of TESLA, INC.

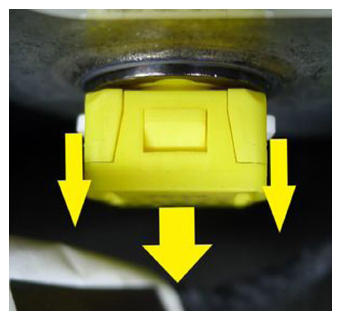

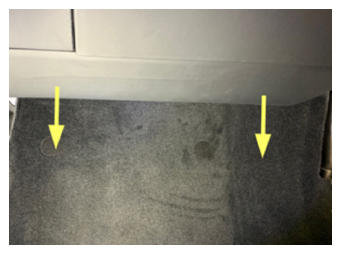

  20. Remove RH knee air bag assembly from vehicle
    NOTE: 2x connectors, 6x tabs, 1x clip, Release 2x locking tab on airbag connector
    G15083905Courtesy of TESLA, INC.
    G15083906Courtesy of TESLA, INC.
    G15083907Courtesy of TESLA, INC.
    G15083908Courtesy of TESLA, INC.
  21. Release glove box
    NOTE: 5x screws, T20, 3 N.m
    G15083909Courtesy of TESLA, INC.
    G15083910Courtesy of TESLA, INC.

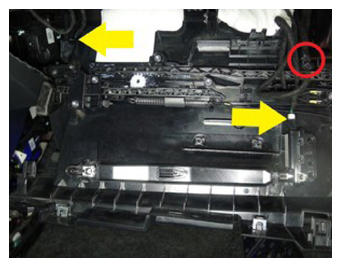

  22. Release glove box connectors
    NOTE: 3x connectors
    G15083911Courtesy of TESLA, INC.

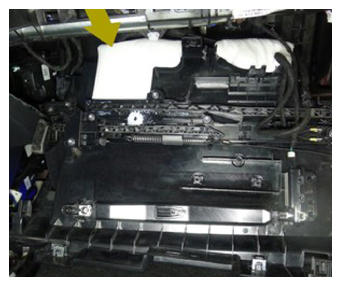

  23. Remove USB outlet
    NOTE: 2x screws, T20, 3 N.m, 1x clip
    G15083912Courtesy of TESLA, INC.
    G15083913Courtesy of TESLA, INC.

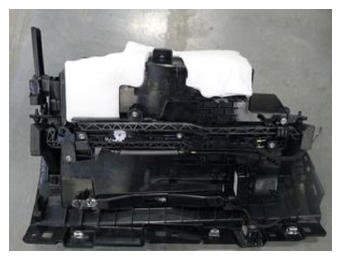

  24. Remove glove box
    G15083914Courtesy of TESLA, INC.

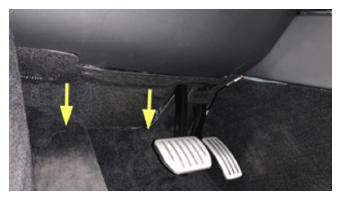

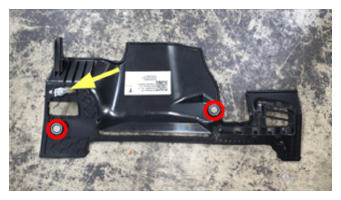

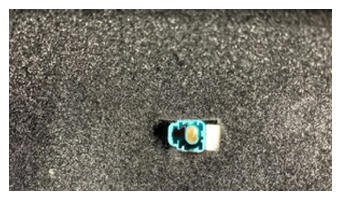

  25. Remove LH footwell cover
    NOTE: 1x connector, 2x magnets
    G15083915Courtesy of TESLA, INC.
    G15083916Courtesy of TESLA, INC.
    G15083917Courtesy of TESLA, INC.

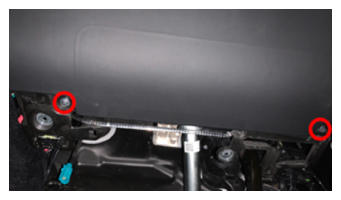

  26. Remove fasteners securing LH knee air bag assembly to vehicle
    NOTE: 2x patch bolts, E10, 8 N.m, Discard after removal
    G15083918Courtesy of TESLA, INC.

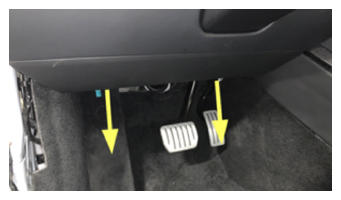

  27. Remove the LH knee air bag assembly from vehicle
    NOTE: 3x connectors, 1x clip, 6x tabs, Release 2x locking tab on airbag connector
    G15083919Courtesy of TESLA, INC.
    G15083920Courtesy of TESLA, INC.
    G15083921Courtesy of TESLA, INC.

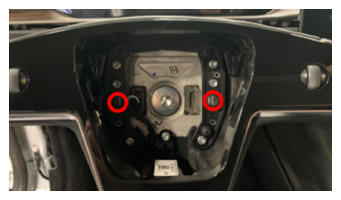

  28. Release spring clip securing driver air bag assembly to steering wheel and pull driver air bag assembly away from steering wheel
    NOTE: 2x spring clips, 2x datums, Press the spring simultaneously from two access holes to release, Access holes located at 4 and 8 o'clock position, Do not insert tool too far as air bag connector could be damaged
    G15083922Courtesy of TESLA, INC.
  29. Disconnect driver air bag connector and remove driver air bag assembly
    NOTE: 1x connector
    G15083923Courtesy of TESLA, INC.

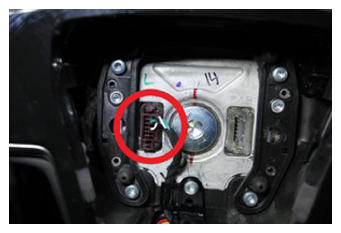

  30. Disconnect steering wheel connector
    NOTE: 1x connector
    G15083924Courtesy of TESLA, INC.
  31. Remove bolt that secures the steering wheel to the column
    NOTE: 1x patch bolt, 10 mm Allen, 80 N.m, Discard after removal
    G15083925Courtesy of TESLA, INC.

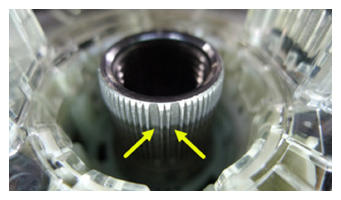

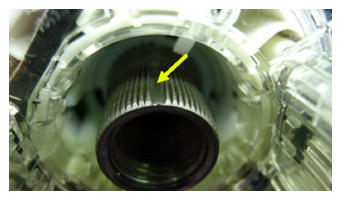

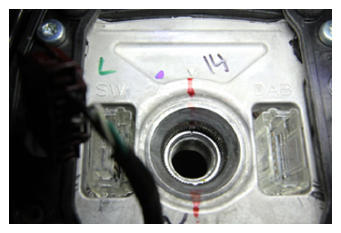

  32. Remove steering wheel
    NOTE: Note that the steering wheel is splined to the column
    G15083926Courtesy of TESLA, INC.
    G15083927Courtesy of TESLA, INC.
    G15083928Courtesy of TESLA, INC.

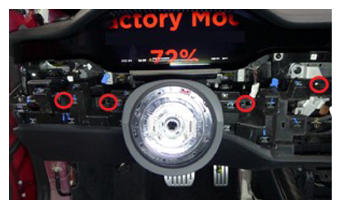

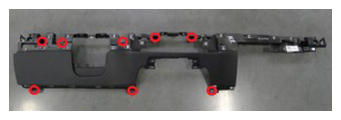

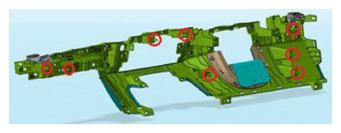

  33. Remove lower instrument panel assembly
    NOTE: 8x screws, T20, 3 N.m, 8x tabs, Release assembly and carefully guide over upper steering column
    G15083929Courtesy of TESLA, INC.
    G15083930Courtesy of TESLA, INC.
    G15083931Courtesy of TESLA, INC.
    G15083932Courtesy of TESLA, INC.

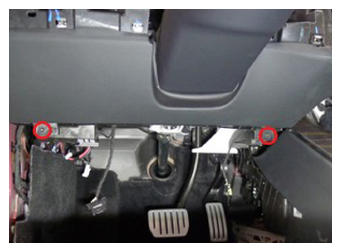

  34. Install lower instrument panel assembly
    NOTE: 8x screws, T20, 3 N.m, 8x tabs, Guide over upper steering column, Engage all tabs before starting screws
    G15083933Courtesy of TESLA, INC.
    G15083934Courtesy of TESLA, INC.
    G15083935Courtesy of TESLA, INC.
    G15083936Courtesy of TESLA, INC.
  35. Install steering wheel
    NOTE: Note that the steering wheel is splined to the column and can only be installed in the correct position
    G15083937Courtesy of TESLA, INC.
    G15083938Courtesy of TESLA, INC.

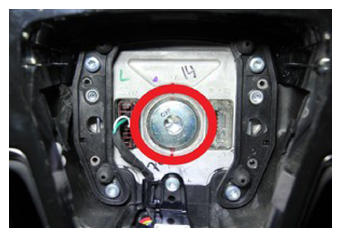

  36. Install bolt securing steering wheel to steering column
    NOTE: 1x patch bolt, 10 mm Allen, 80 N.m, Install new patch bolt
    G15083939Courtesy of TESLA, INC.
  37. Secure steering wheel connector
    NOTE: 1x connector
    G15083940Courtesy of TESLA, INC.

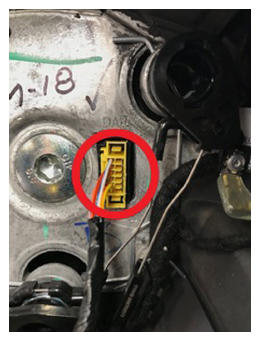

  38. Secure driver air bag connector
    NOTE: 1x connector
    G15083941Courtesy of TESLA, INC.
  39. Secure driver air bag assembly to steering wheel and verify it is fully engaged
    NOTE: 2x datums, 2x spring clip

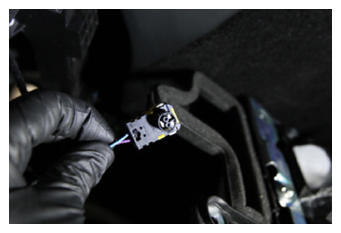

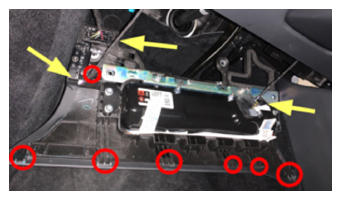

  40. Install the LH knee air bag assembly into vehicle
    NOTE: 1x clip, 3x connectors, 6x tabs, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connectors
    G15083942Courtesy of TESLA, INC.
    G15083943Courtesy of TESLA, INC.
  41. Install fasteners securing LH knee air bag assembly to vehicle
    NOTE: 2x patch bolts, E10, 8 N.m, Install new fasteners
    G15083944Courtesy of TESLA, INC.
  42. Install LH footwell cover
    NOTE: 1x connector, 2x magnets
    G15083945Courtesy of TESLA, INC.
    G15083946Courtesy of TESLA, INC.

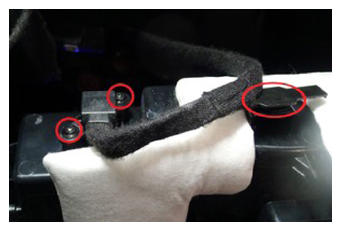

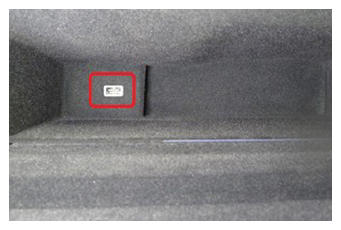

  43. Secure USB outlet
    NOTE: 2x screws, T20, 2 N.m, 1x clip, Ensure USB socket flush in glove box
    G15083947Courtesy of TESLA, INC.
    G15083948Courtesy of TESLA, INC.
  44. Secure glove box connectors
    NOTE: 3x connectors
    G15083949Courtesy of TESLA, INC.

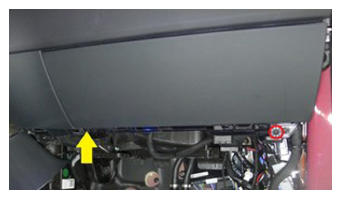

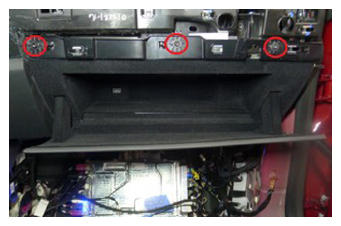

  45. Install glove box
    NOTE: 5x screws, T20, 3 N.m, Install screws at top of box, close lid then install bottom screws. Use manual release to open box if needed
    G15083950Courtesy of TESLA, INC.
    G15083951Courtesy of TESLA, INC.

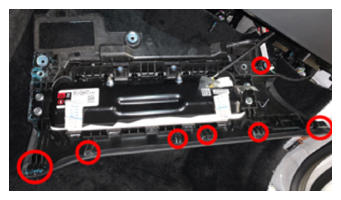

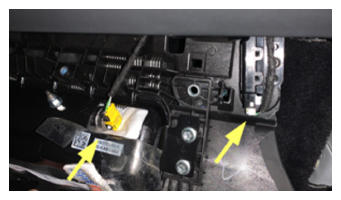

  46. Install RH knee air bag assembly into vehicle
    NOTE: 2x connectors, 6x tabs, 1x clip, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector
    G15083952Courtesy of TESLA, INC.
    G15083953Courtesy of TESLA, INC.
    G15083954Courtesy of TESLA, INC.

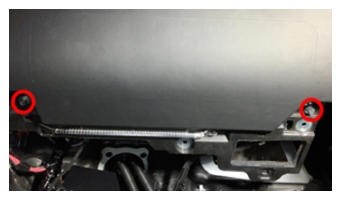

  47. Install fasteners securing RH knee air bag assembly to vehicle
    NOTE: 2x patch bolts, E10, 8 N.m, Install new fasteners
    G15083955Courtesy of TESLA, INC.

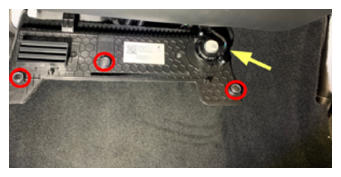

  48. Install RH footwell cover
    NOTE: 3x magnets, 1x connectors
    G15083956Courtesy of TESLA, INC.

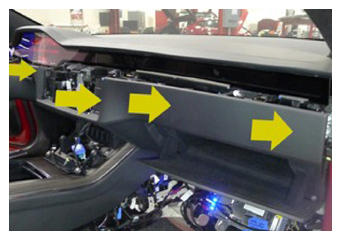

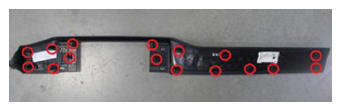

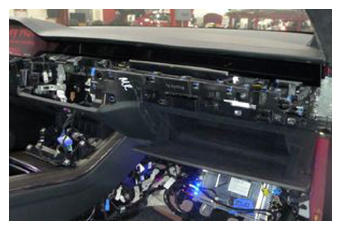

  49. Install IP RH mid Panel
    NOTE: 14x tabs, 2 datums
    G15083957Courtesy of TESLA, INC.
    G15083958Courtesy of TESLA, INC.
    G15083959Courtesy of TESLA, INC.

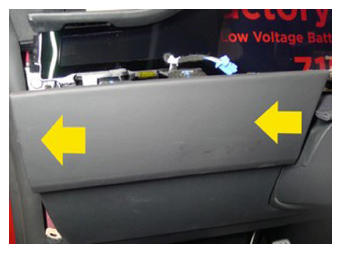

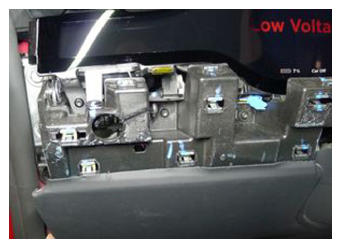

  50. Install IP LH mid panel
    NOTE: 6x tabs
    G15083960Courtesy of TESLA, INC.
    G15083961Courtesy of TESLA, INC.
    G15083962Courtesy of TESLA, INC.

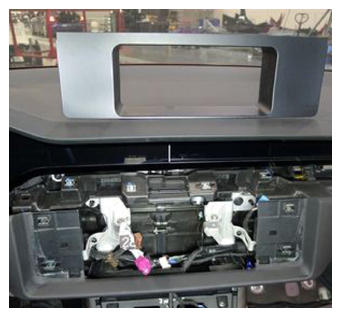

  51. Install IP closeout panel
    NOTE: 4x tabs
    G15083963Courtesy of TESLA, INC.
    G15083964Courtesy of TESLA, INC.
    G15083965Courtesy of TESLA, INC.

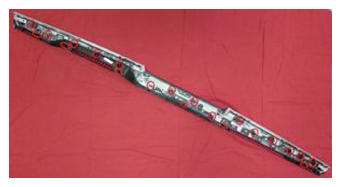

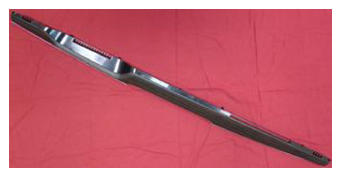

  52. Install IP Decor
    NOTE: 15x clips, 6x datums
    G15083966Courtesy of TESLA, INC.
    G15083967Courtesy of TESLA, INC.
    G15083968Courtesy of TESLA, INC.
    G15083969Courtesy of TESLA, INC.
  53. Install the touchscreen and reconnect LV power. See Touchscreen (Remove and Replace) .

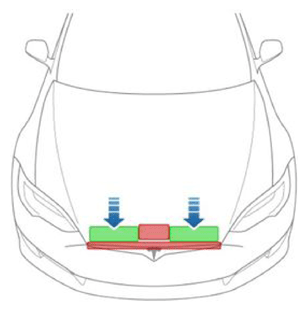

  54. Close hood
    NOTE: Press firmly in green highlighted areas (see image), Damage may result from pressure elsewhere on hood
    G15083970Courtesy of TESLA, INC.

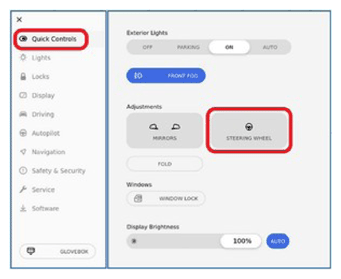

  55. Adjust steering column back to original position
    NOTE: Via UI>Quick Controls>Steering Wheel, Use left steering wheel scroll wheel to adjust steering column
    G15083971Courtesy of TESLA, INC.

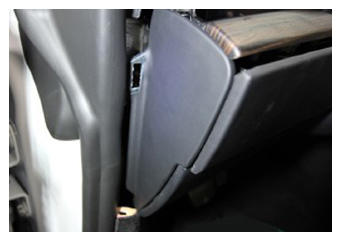

  56. Install LH IP end cap
    NOTE: 4x clips
    G15083972Courtesy of TESLA, INC.
    G15083973Courtesy of TESLA, INC.

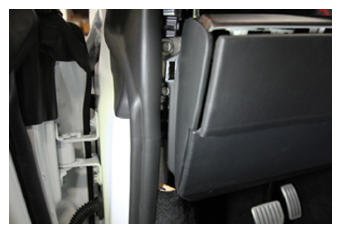

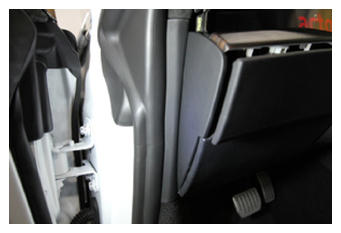

  57. Install LH mid A-pillar trim
    NOTE: 1x clip, 2x tabs, Verify weather seal is seated properly
    G15083974Courtesy of TESLA, INC.
    G15083975Courtesy of TESLA, INC.

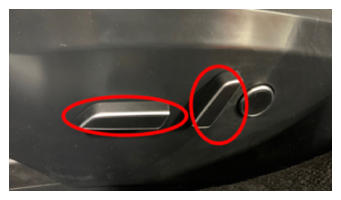

  58. Move LH front seat to original position
    G15083976Courtesy of TESLA, INC.
  59. Raise LH front window
  60. Close LH front door

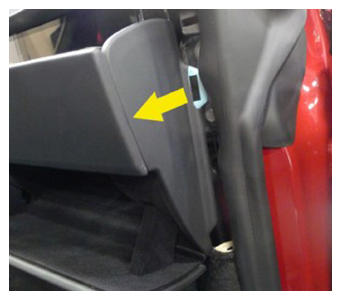

  61. Install RH IP end cap
    NOTE: 4x clips
    G15083977Courtesy of TESLA, INC.
    G15083978Courtesy of TESLA, INC.

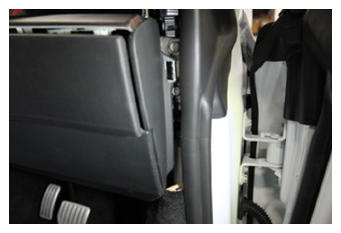

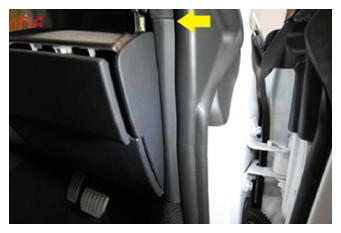

  62. Install RH mid A-pillar trim
    NOTE: 1x clip, 2x tabs, Verify weather seal is seated properly
    G15083979Courtesy of TESLA, INC.
    G15083980Courtesy of TESLA, INC.

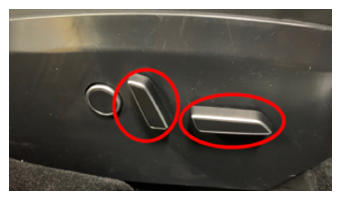

  63. Move RH front seat to original position
    G15083981Courtesy of TESLA, INC.
  64. Raise RH front window
  65. Close RH front door
