End Cap - Instrument Panel - LH - Remove And Replace: Install

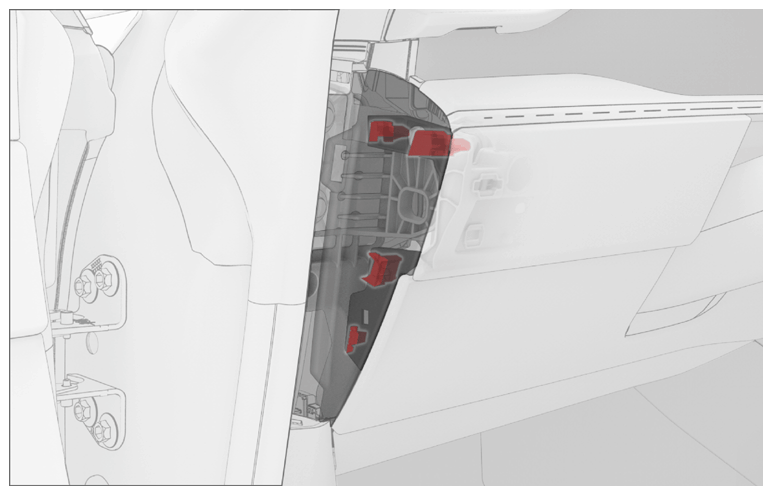

  1. Secure the clips (x4) that attach the LH instrument panel end cap to the A-pillar.
    G15083810Courtesy of TESLA, INC.
  2. Install the LH middle A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
