Cover - Footwell - Driver - Remove And Replace: Remove

  1. Open the LH front door.
  2. Move the driver seat fully rearwards.

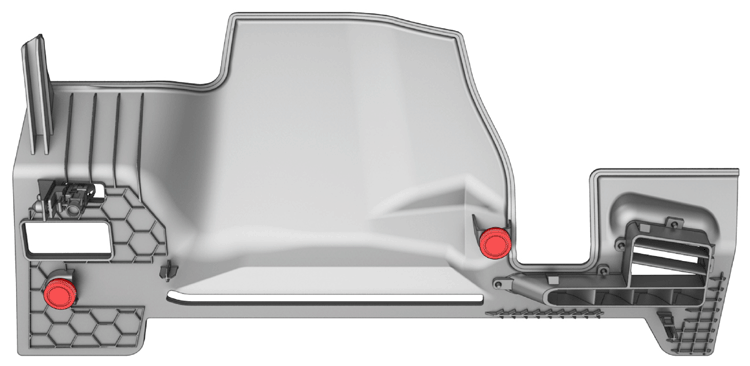

  3. Pull down to release the magnets that attach the driver footwell cover to the vehicle, but do not remove the cover as there is a electrical connector still connected.
    NOTE: The cover is secured using magnets.
    G15083812Courtesy of TESLA, INC.

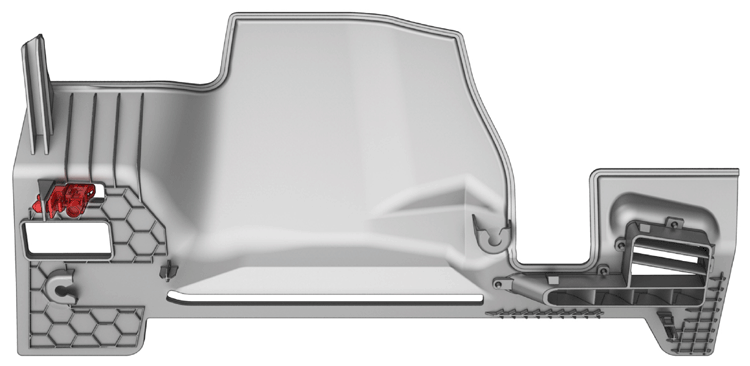

  4. Disconnect the electrical connector, and then remove the footwell cover from the vehicle.
    G15083813Courtesy of TESLA, INC.

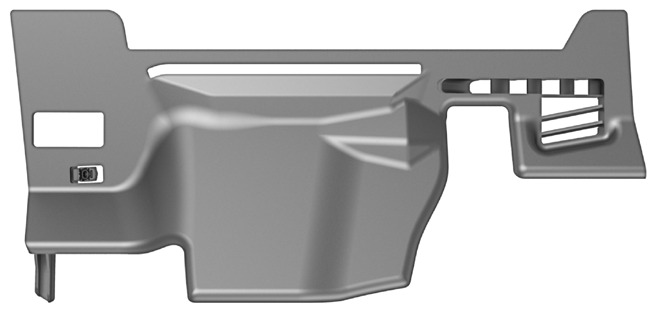

    G15083814Courtesy of TESLA, INC.
