Cover - Footwell - Driver - Remove And Replace: Install

  1. Position the driver footwell cover in the vehicle, and then connect the electrical connector.

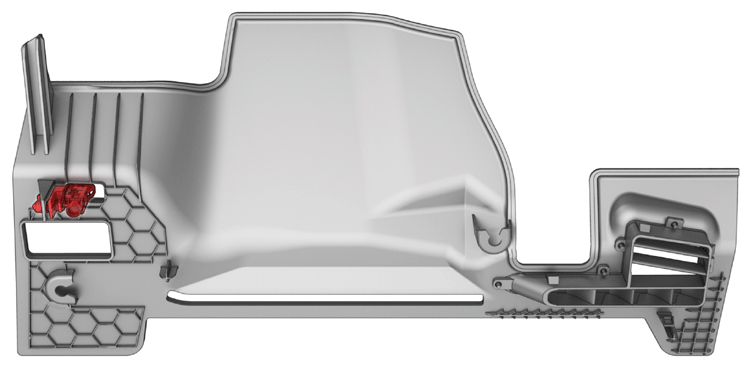

    G15083815Courtesy of TESLA, INC.
  2. Secure the footwell cover into place.
    NOTE: The cover is secured using magnets.

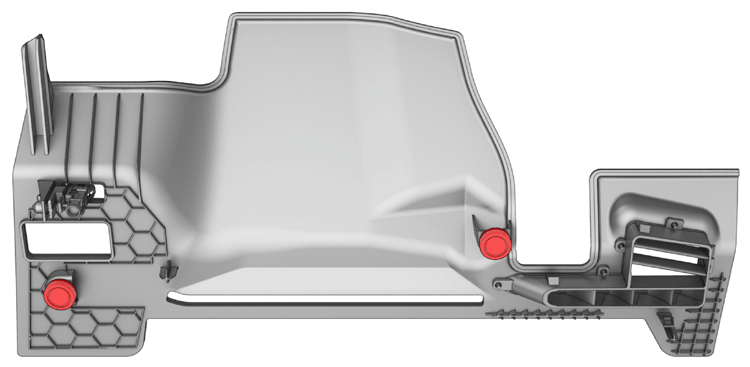

    G15083816Courtesy of TESLA, INC.
  3. Move the driver seat to its original position.
  4. Close the LH front door.
