Aero Lens - Instrument Panel - Remove And Replace: Remove
- Remove the IP sub assembly. See Sub-Assembly - Instrument Panel - Remove And Install .
- Remove the driver instrument panel air vent. See Air Vent - Instrument Panel - Driver (LHD) (Remove and Replace) .

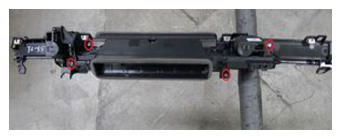

- Remove the screws (x4) that attach the front passenger instrument panel air vent to the aero lens assembly, and then remove the air vent from the assembly.
2 N.m (1.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T20 socket

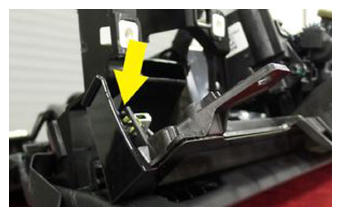

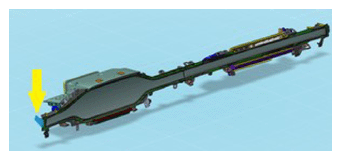

- Release the clip that attaches the LH instrument panel aero lens cover to the aero lens assembly, and then remove the cover from the assembly. Repeat this step for the RH aero lens cover.

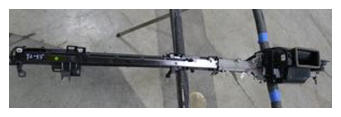

Figure 1. LH shown; RH similar

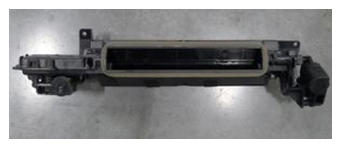

Figure 2. LH shown; RH similar
