Speaker - Front Door - LH - Remove And Replace: Remove

  1. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
  2. Remove the LH front door panel. See Panel - Door Trim - Front - LH (Remove and Replace) .

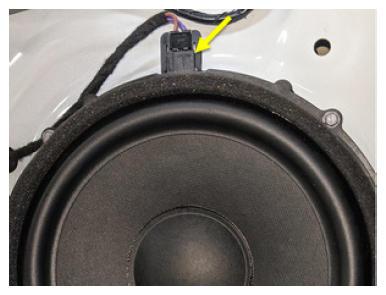

  3. Disconnect the LH front door speaker electrical connector.
    NOTE: Release the tabs on either side of the connector.
    G15045693Courtesy of TESLA, INC.

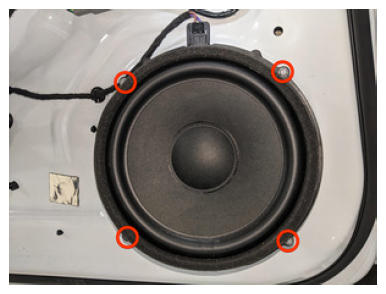

  4. Remove the bolts (x4) that attach the LH front door speaker to the door assembly, and then remove the speaker from the door assembly.

    3.5 N.m (2.6 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • 1/4 inch bit
    G15045694Courtesy of TESLA, INC.
