Speaker - Front Door - LH - Remove And Replace: Install

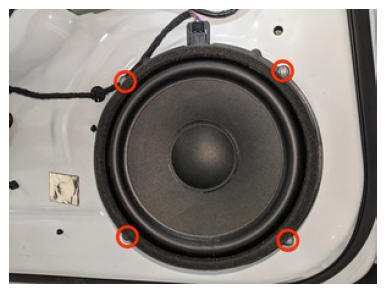

Position the LH front door speaker into the door assembly, and then install the bolts (x4) that attach the speaker to the door assembly.
3.5 N.m (2.6 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 1/4 inch bit
Courtesy of TESLA, INC.

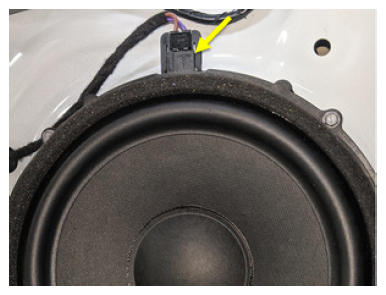

Connect the LH front door speaker electrical connector.
NOTE: Release the tabs on either side of the connector.

Courtesy of TESLA, INC.
Install the LH front door panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
Close the LH front door.

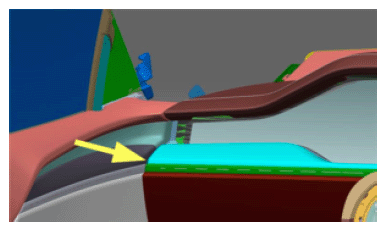

Check the gap fitment of the LH front door decor to the IP decor.
NOTE: Refer to CVIS for current specifications.

Courtesy of TESLA, INC.
Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .

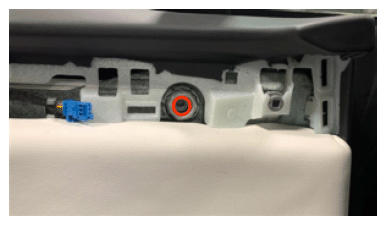

Adjust the LH front door trim decor.
6 N.m (4.4 ft-lbs)

NOTE: Loosen the screw, and then rotate the adjustment nut until the desired specification is reached. Tighten the screw once complete

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- 18 mm deep socket
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Install the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
Check the gap fitment of the LH front door decor to the IP decor.
NOTE: Refer to CVIS for current specifications.

Courtesy of TESLA, INC.
