Antenna Amplifier - FM - Remove And Replace: Remove
- Open the liftgate.
- Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
- Remove the speaker grill trim. See Grille - Speaker - Liftgate (Remove and Replace) .
- Remove the upper liftgate trim. See Trim - Upper - Liftgate (Remove and Replace) .

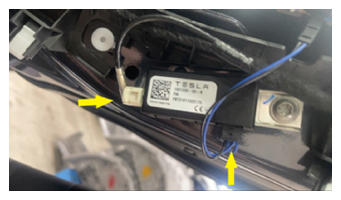

- Disconnect the connectors (x2) to the FM antenna amplifier.

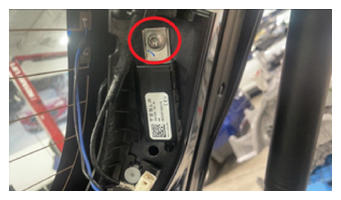

- Remove the bolt that attaches the FM antenna amplifier to the liftgate.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 bit

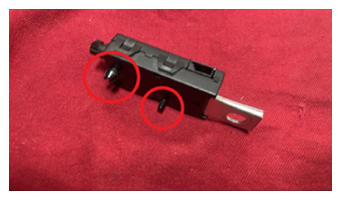

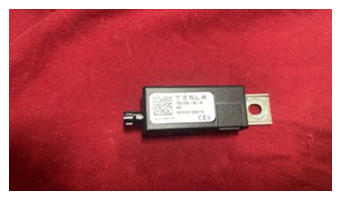

- Carefully pry the FM antenna amplifier away from the lift game to release the retainer, and then remove the antenna amplifier from the liftgate.
