Antenna Amplifier - FM - Remove And Replace: Install

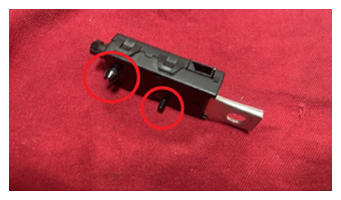

- Position the FM antenna amplifier onto the liftgate, and then press the antenna into the liftgate to seat the retainer.NOTE: Make sure the datum is lined up and the retainer clips in securely.

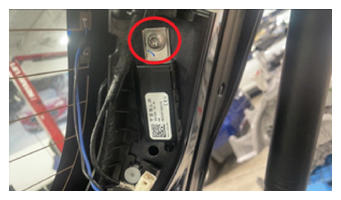

- Install the bolt that attaches the FM antenna amplifier to the liftgate.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T30 bit

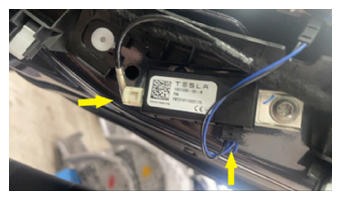

- Connect the connectors (x2) to the FM antenna amplifier.
- Install the upper liftgate trim. See Trim - Upper - Liftgate (Remove and Replace) .
- Install the speaker grill trim. See Grille - Speaker - Liftgate (Remove and Replace) .
- Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
- Close the liftgate.
