Sensor - Parking Distance - Outer - Rear (HW3) - Remove And Replace: Remove

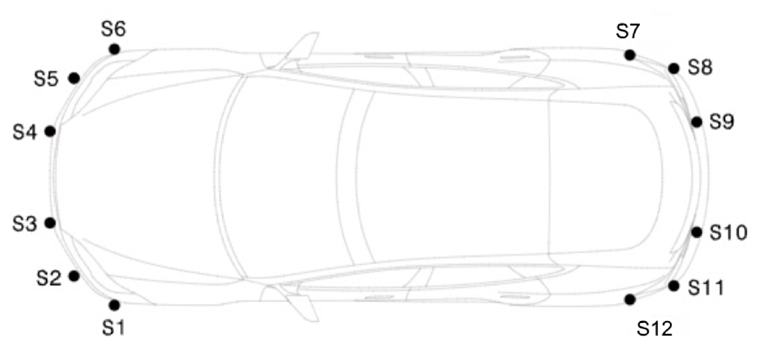

NOTE: This procedure is applicable to sensors S7, S8, S11, and S12.

Courtesy of TESLA, INC.

1. On the vehicle touchscreen, touch Controls > Suspension > Very High  .
2. On the vehicle touchscreen, touch Controls > Service > Jack Mode  to activate Jack Mode.
3. Disconnect LV power. See LV Power (Disconnect And Connect) .

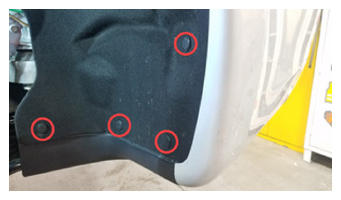

4. Remove the push clips (x4) that attach the rear wheel arch liner to the front fascia, and then move the wheel arch liner to the side.

   Courtesy of TESLA, INC.

5. If servicing sensors 8 or 11:

   Courtesy of TESLA, INC.

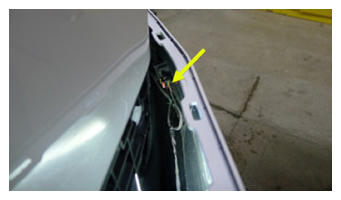

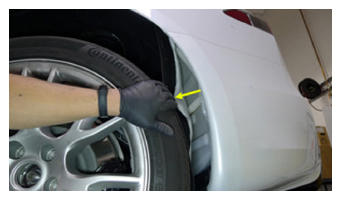

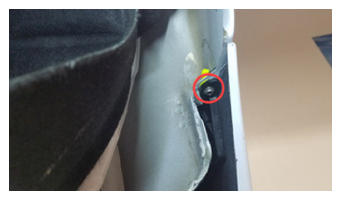

   1. Remove the screw that attaches the rear fascia to the LH fender bracket.
      NOTE: 1x screw, T25, 5 N.m, Flex liner against tire

      Courtesy of TESLA, INC.

      Courtesy of TESLA, INC.

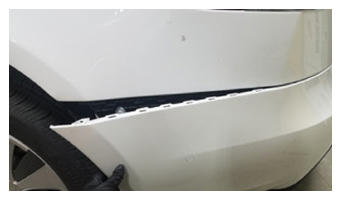

   2. Release LH fascia edge from fender bracket.

      Courtesy of TESLA, INC.

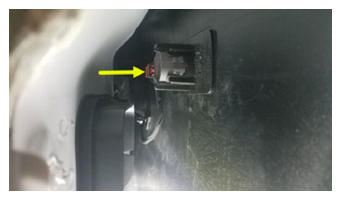

6. Disconnect the electrical harness from the parking distance sensor.
   CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.

   Courtesy of TESLA, INC.

   Courtesy of TESLA, INC.

7. Release the tabs that attach the parking distance sensor to the front fascia, and then remove the sensor from the fascia.

   Courtesy of TESLA, INC.
