Carefully install the LH repeater to the fender.
CAUTION:
If reinstalling the same side repeater, make sure the mounting tabs are not damaged. If any of the tabs are damaged, replace the repeater.
- Insert the rear hook clip to the repeater slot in the fender and apply light constant pressure at the rear of the repeater, and maintain pressure until the repeater is installed.
 Courtesy of TESLA, INC.
|

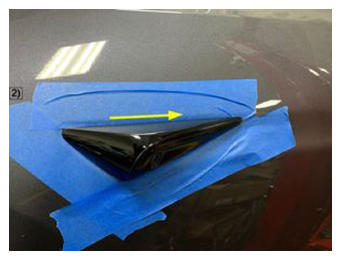

- Slide the repeater rearward until the rear hook clip engages the fender and the front clip clears the edge of the repeater slot in the fender.
 Courtesy of TESLA, INC.
|
- Press on the front of the repeater until the front clip is inside of the repeater slot. Slide the repeater toward the front of the vehicle until the front clip engages the fender, and then release pressure on the repeater.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
