Camera - Rear Facing (HW3) - Remove and Replace: Install

  1. Route the rear facing camera harness through the liftgate and position the camera to the vehicle.

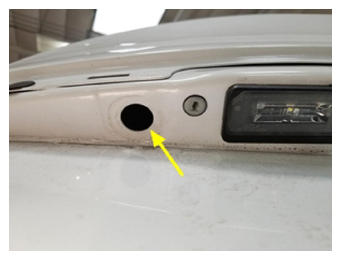

    G15092033Courtesy of TESLA, INC.

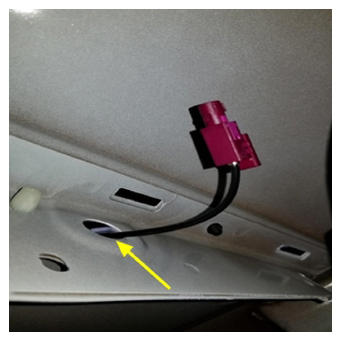

    G15092034Courtesy of TESLA, INC.
  2. Position the grommet to the liftgate and harness.
    G15092035Courtesy of TESLA, INC.
  3. Connect the rear facing camera connector to the RH liftgate harness.

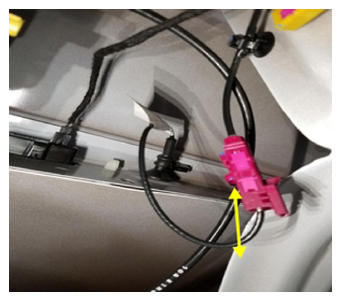

    G15092036Courtesy of TESLA, INC.
  4. Using new bolts (x2), install the rear facing camera to the liftgate bracket.
    NOTE: T20, 1 N.m

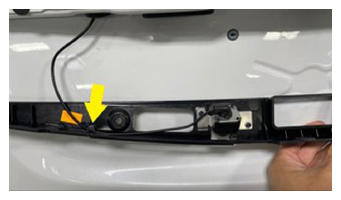

    G15092037Courtesy of TESLA, INC.

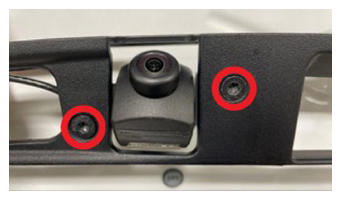

    G15092038Courtesy of TESLA, INC.
  5. Install the LH and RH reverse lights. See Light - Fog/Reverse - Rear - LH (Remove And Replace) .
  6. Remove all masking tape from the liftgate.
  7. Verify rear backup camera operation. If the camera does not operate correctly, disconnect LV power for 3 minutes. See LV Power (Disconnect And Connect) .
