Speaker - Pedestrian Warning - Remove And Replace: Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
  2. Remove the valance from the front aero shield. See Valance - Front Fascia (Remove and Replace) .

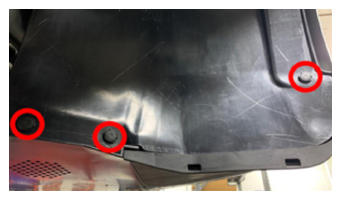

  3. Remove the clips (x3) that attach the RH wheelhouse liner to the front fascia.
    G15093067Courtesy of TESLA, INC.

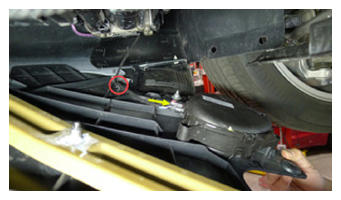

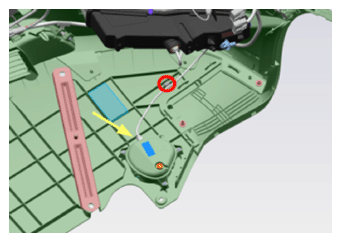

  4. Disconnect and release pedestrian warning speaker electrical harness.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    G15093068Courtesy of TESLA, INC.
    G15093069Courtesy of TESLA, INC.

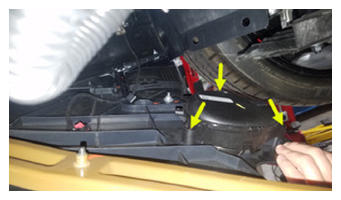

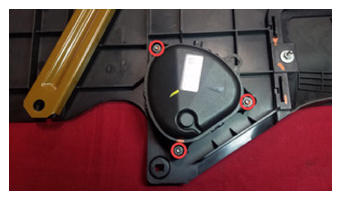

  5. Remove the screws (x3) that attach the pedestrian warning speaker to the front fascia.
    G15093070Courtesy of TESLA, INC.
    G15093071Courtesy of TESLA, INC.
