Body Controller Left Body 1/2 - Wiring Diagram (Shanghai: 06/16/2021 - 11/11/2021)

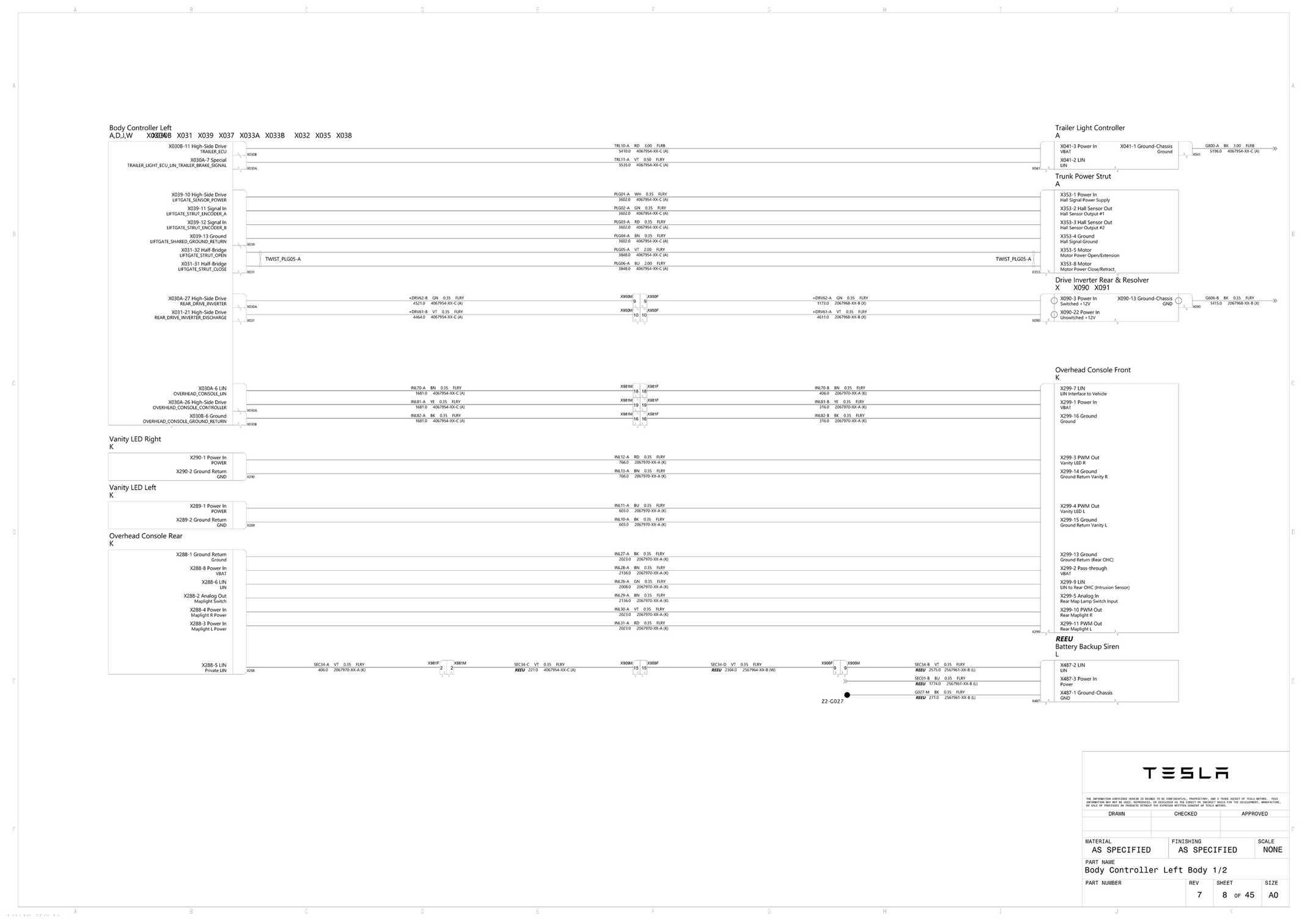

Fig 1: Body Controller Left Body 1/2 - Wiring Diagram (Shanghai: 06/16/2021 - 11/11/2021)

G16612200

Courtesy of TESLA, INC.
