Seats Front Left - Wiring Diagram (Fremont: 10/05/2020 - 01/16/2022 | Shanghai: 12/28/2020 - 06/15/2021)

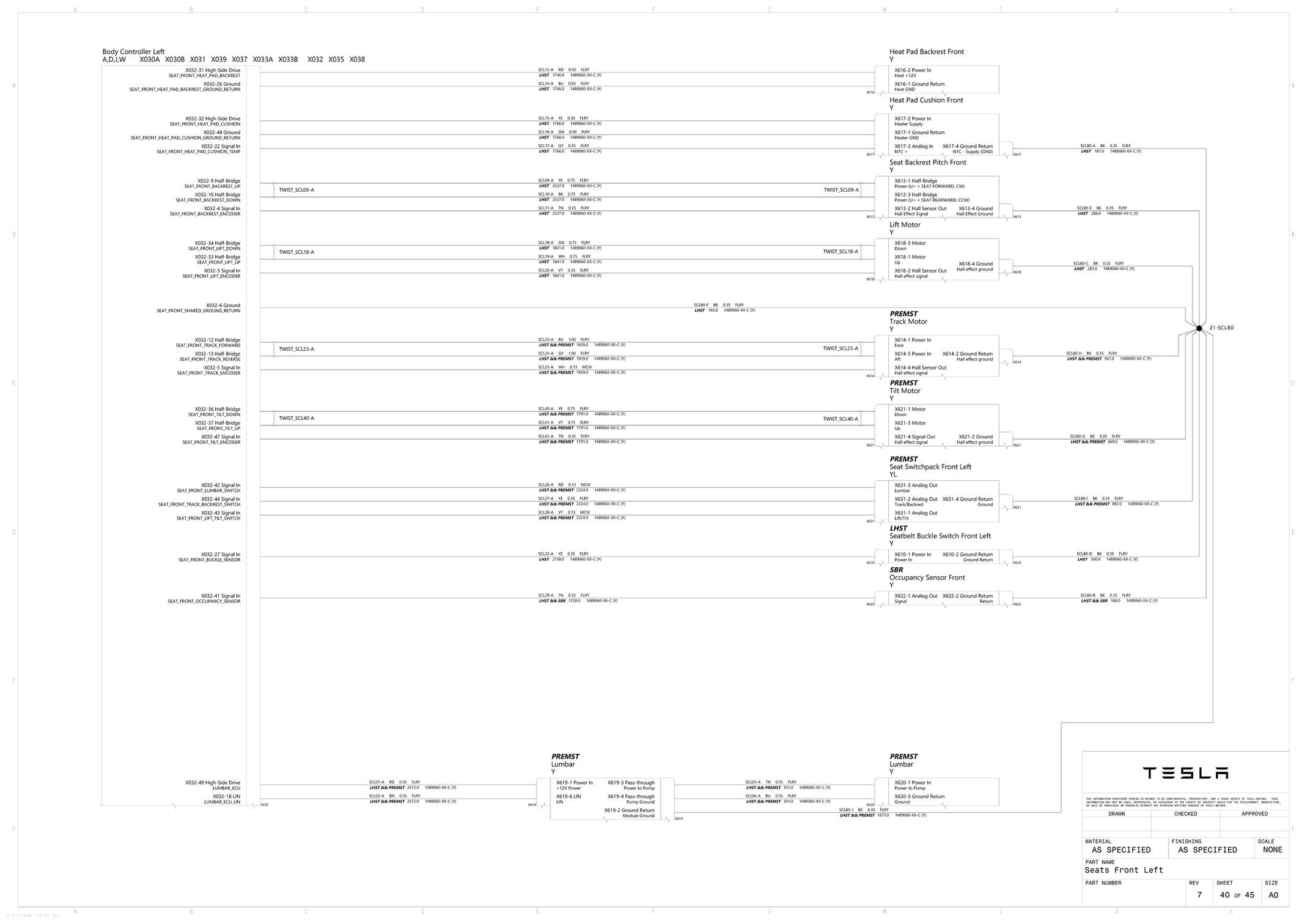

Fig 1: Seats Front Left - Wiring Diagram (Fremont: 10/05/2020 - 01/16/2022 | Shanghai: 12/28/2020 - 06/15/2021)
G16612278Courtesy of TESLA, INC.
