Connector End View - X952F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1067989-00-A
Connector MOLEX 33472-1606
Color BK
Connector Location: Currently not available
Connector Pinout:

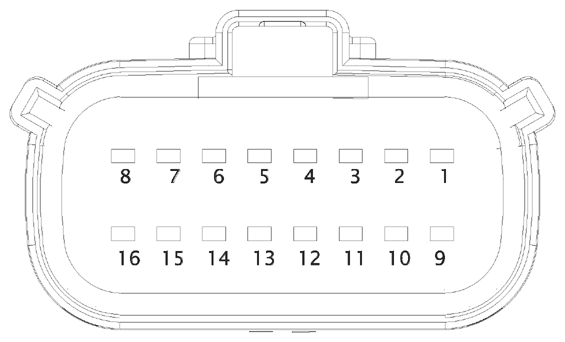

Fig 1: Connector End View - X952F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | TN | 0.35 | TESLA | MAT-120-240 | X156 | 1 |
| 3 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X156 | 2 |
| 4 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X157 | 1 |
| 5 | MOLEX | 33012-3004 | 1.5x0.8F | VT | 0.35 | TESLA | MAT-120-240 | X157 | 2 |
| 6 | MOLEX | 33012-3004 | 1.5x0.8F | BN/WH | 0.35 | TESLA | MAT-120-240 | X090 | 12 |
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | TESLA | MAT-120-240 | X090 | 2 |
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X090 | 23 |
| 9 | MOLEX | 33012-3004 | 1.5x0.8F | WH | 0.35 | TESLA | MAT-120-240 | X090 | 4 |
| 10 | MOLEX | 33012-3002 | 1.5x0.8F | RD | 1.00 | TESLA | MAT-120-240 | X092 | 1 |
| 11 | MOLEX | 33012-3004 | 1.5x0.8F | BN | 0.35 | TESLA | MAT-120-240 | X086 | 3 |
| 12 | MOLEX | 33012-3004 | 1.5x0.8F | YE | 0.35 | TESLA | MAT-120-240 | X086 | 2 |
| 13 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X086 | 1 |
| 14 | MOLEX | 33012-3004 | 1.5x0.8F | BK | 0.35 | TESLA | MAT-120-240 | X090 | 13 |
| 15 | unused | ||||||||
| 16 | unused | ||||||||
