Connector End View - X926F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1042621-00-A

Connector SUMITOMO 6098-5622

Color WH

Connector Location:

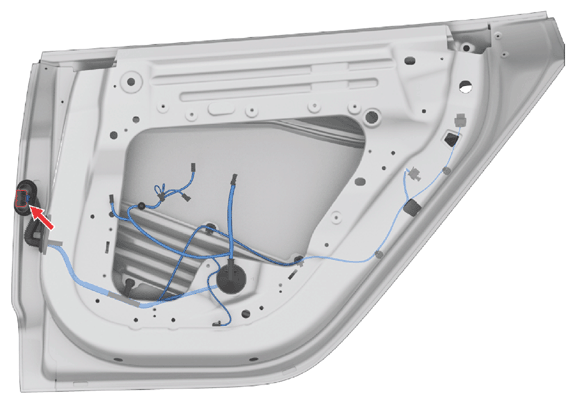

Fig 1: Connector Component Location - X926F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X926F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50	X463	1
2	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X456	3
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X462	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X463	2
6	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X463	4
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X466	1
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X457	1
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X457	4
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X457	3
11	unused
12	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50	X463	5
13	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X456	2
14	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X455	2
15	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X455	4
16	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X465	1
17	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X462	1
18	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50	X591	1
19	SUMITOMO	8100-3625	0.64x0.64F	GN	0.50	X591	2
20	unused
