Connector End View - X908M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042620-01-A
Connector SUMITOMO 6098-5616
Color BK
Connector Location:

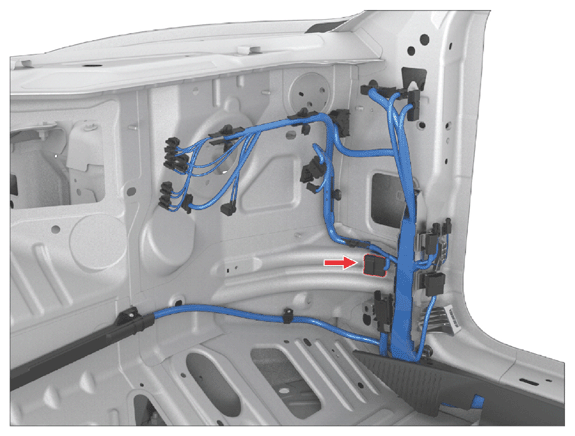

Fig 1: Connector Component Location - X908M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

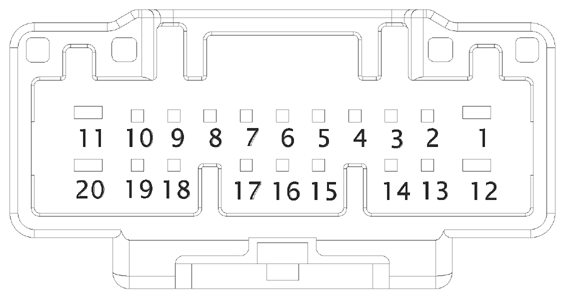

Fig 2: Connector End View - X908M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 2.00 | X171A | 16 | ||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X051 | 37 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X952M | 4 | ||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X952M | 5 | ||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.50 | X175A | 4 | ||
| 6 | SUMITOMO | 8100-3623 | 0.64x0.64M | BU | 0.50 | X175A | 3 | ||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE/LTBU | 0.35 | X175A | 5 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X175A | 6 | ||
| 9 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.35 | X051 | 43 | ||
| 10 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.50 | X059 | 30 | ||
| 11 | SUMITOMO | 8230-4924 | 1.5x0.6M | TN | 1.00 | X098 | 18 | ||
| 12 | SUMITOMO | 8230-4923 | 1.5x0.6M | BK | 2.00 | X171A | 9 | ||
| 13 | SUMITOMO | 8100-3623 | 0.64x0.64M | DKGN/WH | 0.35 | X050A | 1 | ||
| 14 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X050A | 2 | ||
| 15 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.50 | X059 | 14 | ||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | TN | 0.35 | X952M | 2 | ||
| 17 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X952M | 3 | ||
| 18 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X952M | 9 | ||
| 19 | SUMITOMO | 8100-3623 | 0.64x0.64M | TN | 0.35 | X098 | 3 | ||
| 20 | unused | ||||||||
