Connector End View - X886M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1097873-00-A
Connector ROSENBERGER AMZ040-C00-A
Color BK
Connector Location:

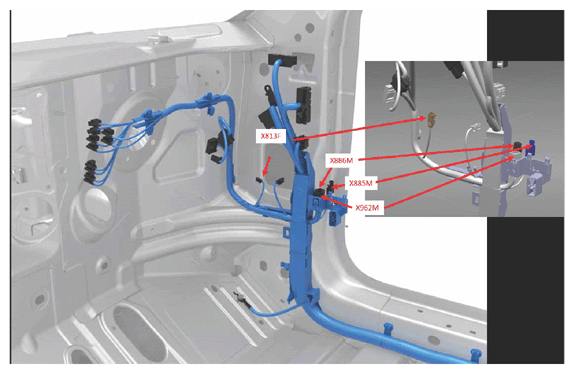

Fig 1: Connector Component Location - X886M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

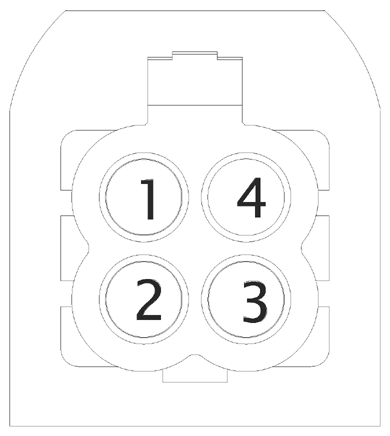

Fig 2: Connector End View - X886M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | AMS11A-102Z5 | COAX | BK | D462 | X896 | 1 | ||
| 2 | ROSENBERGER | AMS11A-102Z5 | COAX | BK | D462 | X896 | 2 | ||
| 3 | ROSENBERGER | AMS11A-102Z5 | COAX | BK | D462 | X898 | 1 | ||
| 4 | ROSENBERGER | AMS11A-102Z5 | COAX | BK | D462 | X880 | 1 |
