Connector End View - X838 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1099356-01-A
Connector ROSENBERGER 59Z127-000-B
Color WH
Connector Location:

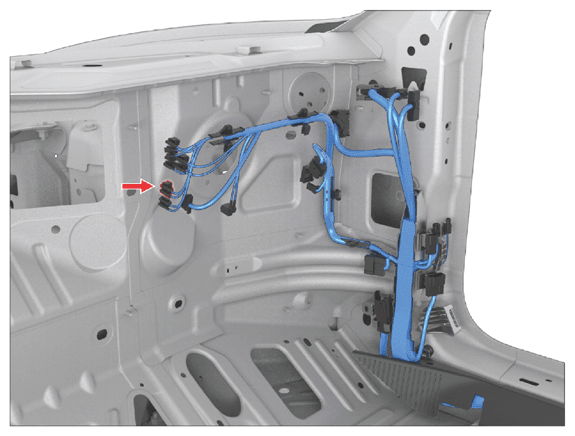

Fig 1: Connector Component Location - X838 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

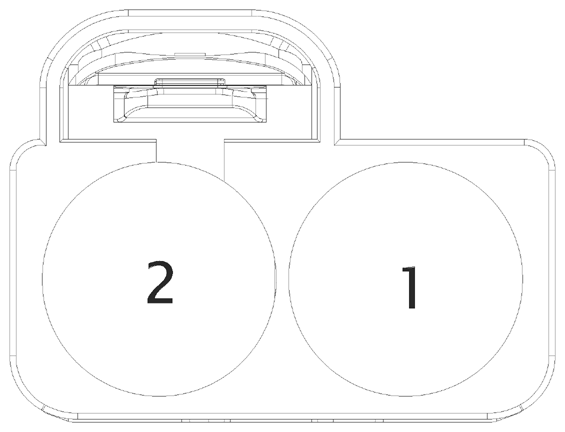

Fig 2: Connector End View - X838 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | 59K26A-1M4Z4 | COAX | BK | D302 | X822F | 1 | ||
| 2 | ROSENBERGER | 59K26A-1M4Z4 | COAX | BK | D302 | X817 | 1 |
