Connector End View - X694 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1502181-00-A
Connector DELPHI 12052856
Color BK
Connector Location:

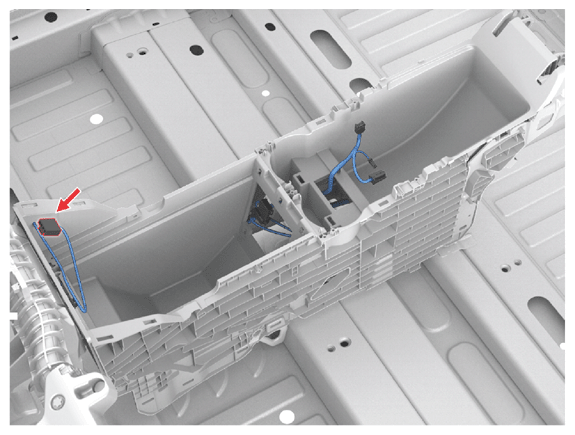

Fig 1: Connector Component Location - X694 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X694 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12052217 | 2.8x0.8F | GN | 0.35 | X930M | 6 | ||
| B | unused | ||||||||
| C | DELPHI | 12066214 | 2.8x0.8F | BK | 2.00 | X196B | B | ||
| D | DELPHI | 12066214 | 2.8x0.8F | RD | 2.00 | X196B | C | ||
