Connector End View - X516 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1496687-02-A
Connector DELPHI 35126366
Color BU
Connector Location:

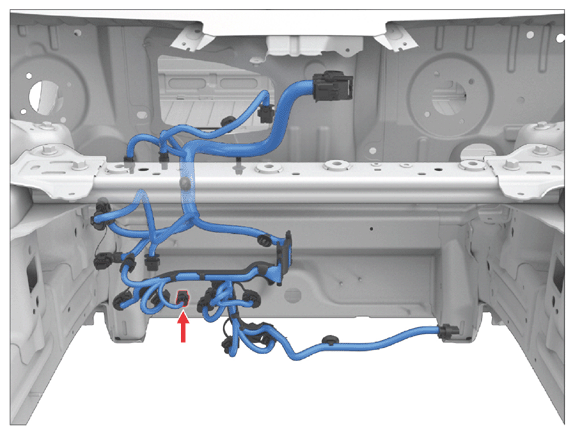

Fig 1: Connector Component Location - X516 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

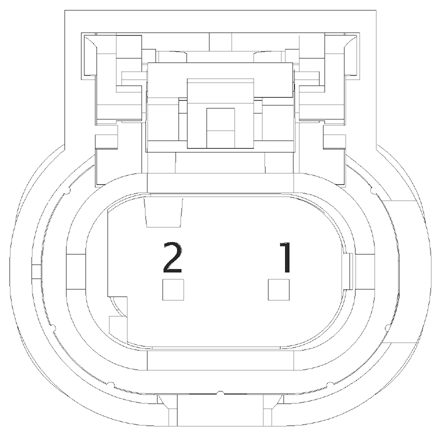

Fig 2: Connector End View - X516 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452668-3 | 1.2x0.6FS | VT | 0.50 | AMP | 967067-1 | X021 | L3 |
| 2 | AMP | 7-1452668-3 | 1.2x0.6FS | WH | 0.50 | AMP | 967067-1 | X021 | M3 |
