Connector End View - X197 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1080671-00-A
Connector DELPHI 12176836
Color GY
Connector Location:

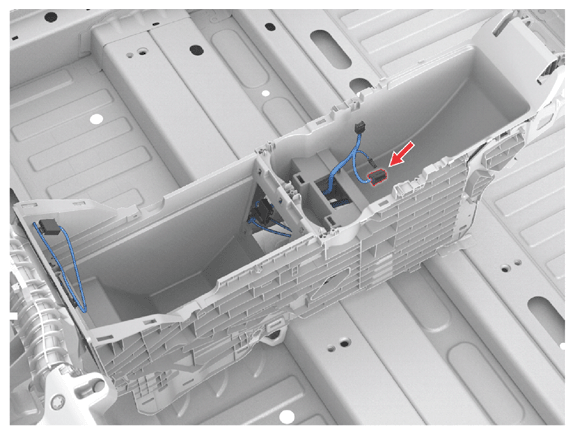

Fig 1: Connector Component Location - X197 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X197 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12110842 | 2.8x0.8F | BU | 2.00 | X930M | 1 | ||
| B | unused | ||||||||
| C | DELPHI | 12110842 | 2.8x0.8F | BN | 2.00 | X930M | 26 | ||
