Connector End View - X186 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1015004-00-B
Connector DELPHI 13649797
Color BK
Connector Location:

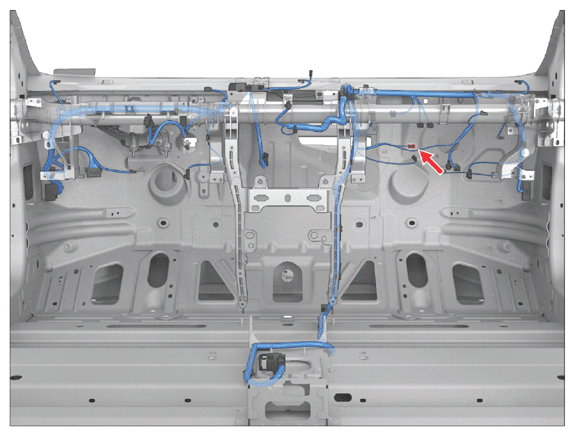

Fig 1: Connector Component Location - X186 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X186 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13580635 | 0.64x0.64F | VT | 0.50 | X055 | 17 | ||
| 2 | DELPHI | 13580635 | 0.64x0.64F | BN | 0.50 | X055 | 23 |
