Connector End View - X182_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042609-00-A
Connector SUMITOMO 6098-6104
Color WH
Connector Location:

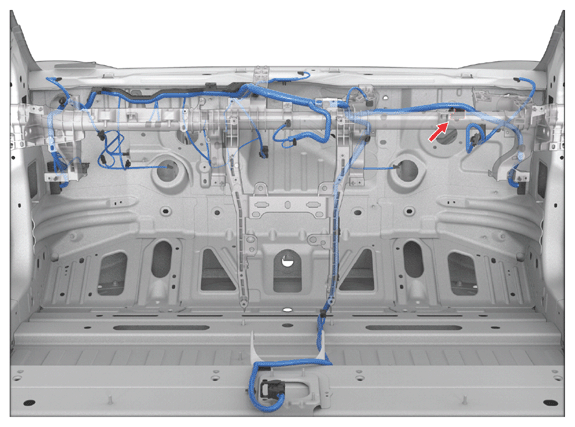

Fig 1: Connector Component Location - X182_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X182_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4925 | 1.5x0.6M | BU | 0.50 | X035_1 | 31 | ||
| 2 | SUMITOMO | 8230-4925 | 1.5x0.6M | GN | 0.50 | X035_1 | 15 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8230-4925 | 1.5x0.6M | RD | 0.50 | X035_1 | 36 | ||
| 6 | SUMITOMO | 8230-4925 | 1.5x0.6M | WH | 0.50 | X035_1 | 35 | ||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X035_1 | 39 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X035_1 | 24 | ||
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.35 | X035_1 | 40 | ||
| 12 | SUMITOMO | 8100-3623 | 0.64x0.64M | BU | 0.35 | X035_1 | 7 | ||
