Connector End View - X180_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1459574-00-A
Connector KOSTAL 22400736187
Color YL
Connector Location:

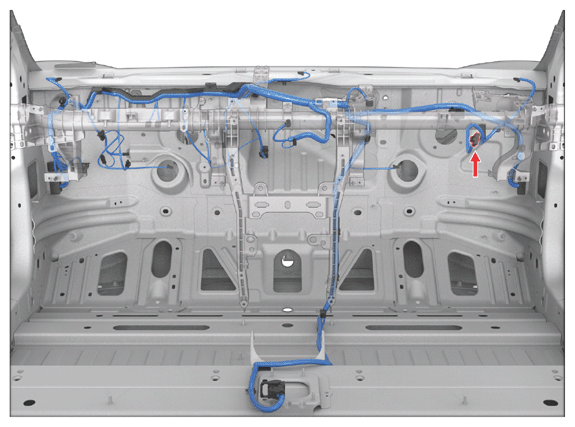

Fig 1: Connector Component Location - X180_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X180_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | KOSTAL | 32124734013 | 1.2x0.6F | GY | 0.35 | X035_1 | 44 | ||
| 2 | KOSTAL | 32124734013 | 1.2x0.6F | BN/WH | 0.35 | X035_1 | 13 | ||
| 3 | KOSTAL | 32124734013 | 1.2x0.6F | BN | 0.35 | X035_1 | 12 | ||
| 4 | KOSTAL | 32124734033 | 1.2x0.6F | BK | 0.75 | ||||
| 5 | unused | ||||||||
| 6 | KOSTAL | 32124734033 | 1.2x0.6F | BK | 0.75 | ||||
| 7 | KOSTAL | 32124734033 | 1.2x0.6F | VT | 0.75 | X035_1 | 5 | ||
| 8 | KOSTAL | 32124734013 | 1.2x0.6F | TN | 0.35 | X200_1 | 17 | ||
| 9 | KOSTAL | 32124734013 | 1.2x0.6F | BN | 0.35 | X200_1 | 16 | ||
| 10 | KOSTAL | 32124734013 | 1.2x0.6F | RD | 0.35 | X200_1 | 21 | ||
| 11 | KOSTAL | 32124734013 | 1.2x0.6F | GN | 0.35 | X200_1 | 20 | ||
| 12 | KOSTAL | 32124734013 | 1.2x0.6F | YE | 0.35 | X200_1 | 9 | ||
| 13 | KOSTAL | 32124734013 | 1.2x0.6F | BU | 0.35 | X200_1 | 10 | ||
| 14 | KOSTAL | 32124734013 | 1.2x0.6F | BN | 0.35 | X035_1 | 41 | ||
