Connector End View - X175 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1660467-00-A

Connector HIROSE GT25-16DS-HU

Color BK

Connector Location:

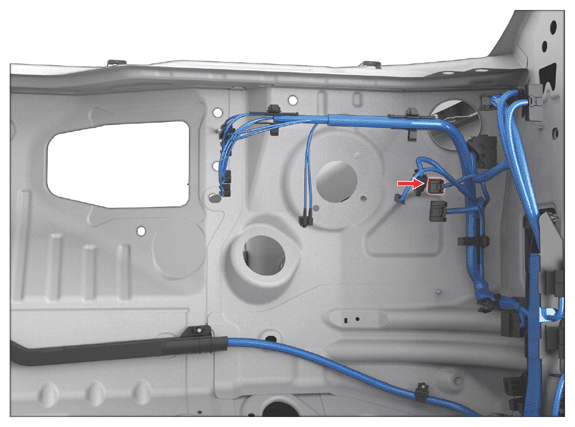

Fig 1: Connector Component Location - X175 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

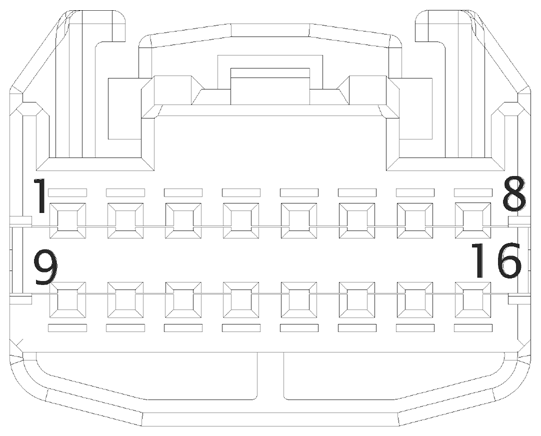

Fig 2: Connector End View - X175 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	HIROSE	GT25H-2024SCF	0.64F	BU	0.50	X908M	6
4	HIROSE	GT25H-2024SCF	0.64F	WH	0.50	X908M	5
5	HIROSE	GT25H-2024SCF	0.64F	YE/LTBU	0.35	X908M	7
6	HIROSE	GT25H-2024SCF	0.64F	YE	0.35	X908M	8
7	HIROSE	GT25H-2024SCF	0.64F	RD	0.50	X936M	14
8	HIROSE	GT25H-2024SCF	0.64F	BK	0.50	X936M	26
9	HIROSE	GT25H-2024SCF	0.64F	YE	0.50	X051	32
10	HIROSE	GT25H-2024SCF	0.64F	VT	0.50	X051	31
11	HIROSE	GT25H-2024SCF	0.64F	GY	0.35	X562	7
12	HIROSE	GT25H-2024SCF	0.64F	YE	0.35	X562	9
13	HIROSE	GT25H-2024SCF	0.64F	BK	0.50	X051	33
14	HIROSE	GT25H-2024SCF	0.64F	TN	0.50	X051	34
15	HIROSE	GT25H-2024SCF	0.64F	RD	0.35	X935M	10
16	HIROSE	GT25H-2024SCF	0.64F	TN	0.35	X935M	9
