Connector End View - X055 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1043175-00-A

Connector  SUMITOMO 6098-4831

Color  WH

Connector Location:

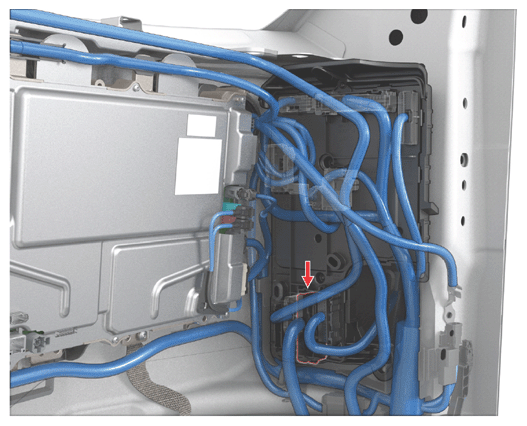

Fig 1: Connector Component Location - X055 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612532Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X055 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612533Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X200 38
2 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X558 4
3 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X558 5
4 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X559 5
5 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X542 1
6 unused
7 unused
8 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X200 1
9 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X200 2
10 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X200 34
11 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X200 33
12 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X281 1
13 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X542 4
14 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X542 3
15 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X187 1
16 unused
17 SUMITOMO 8100-3625 0.64x0.64F VT 0.50     X186 1
18 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X200 39
19 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X559 4
20 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X558 6
21 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X559 6
22 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X542 2
23 SUMITOMO 8100-3625 0.64x0.64F BN 0.50     X186 2
24 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X547 2
25 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X550 2
26 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X559 3
27 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X559 7
28 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X558 3
29 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X558 7
30 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X547 1
31 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X550 1
32 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 40
33 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X200 27
34 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X200 35
35 SUMITOMO 8100-3625 0.64x0.64F TN 0.50     X576 1
36 SUMITOMO 8100-3625 0.64x0.64F BK 0.50     X576 2
37 SUMITOMO 8100-3625 0.64x0.64F YE 0.50     X566 1
38 SUMITOMO 8100-3625 0.64x0.64F VT 0.50     X566 2
39 SUMITOMO 8100-3625 0.64x0.64F RD 0.50     X595 1
40 SUMITOMO 8100-3625 0.64x0.64F BU 0.50     X595 2
