Panel - Aero Shield - Front - Remove and Replace: Install
- Apply a thin bead of Loctite 222 to the threads of the bolts (x9) that attach the front aero shield panel to the vehicle.

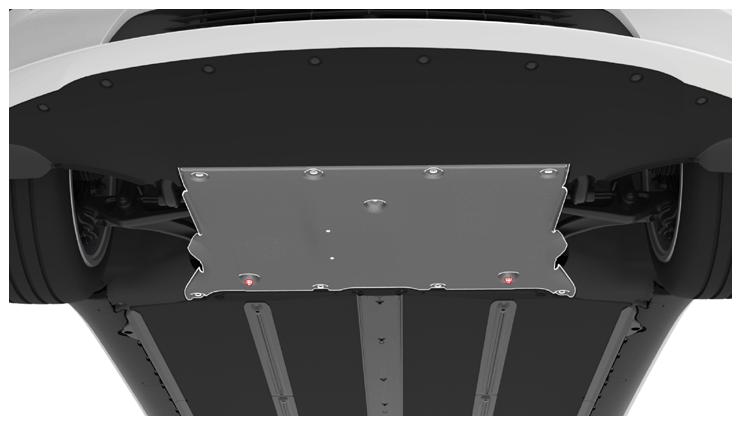

- Install the front aero shield panel to the underside of the vehicle, and then hand-tighten the nuts (x2) to temporarily hold the panel in place.
- Hand-tighten the bolts (x9) that attach the front aero shield panel to the vehicle.

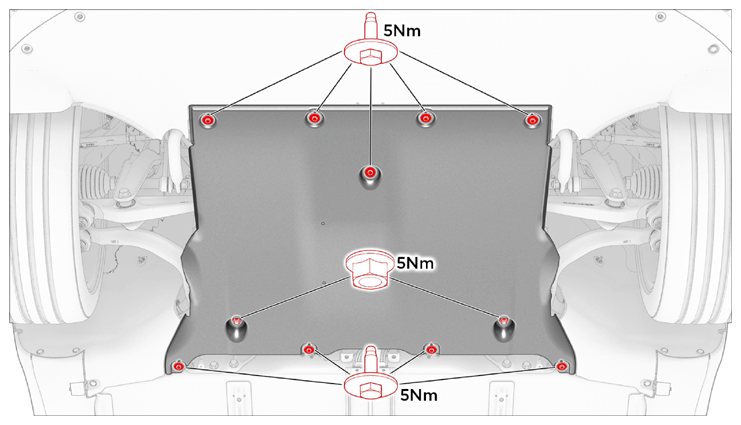

- Torque the nuts (x2) and bolts (x9) to the proper specification.
5 N.m (3.7 ft-lbs)
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 15 mm socket and 10 mm socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 4 in extension
- Lower the vehicle. See RAISE VEHICLE - 2 POST LIFT .
