Trim - Side Rail - LH - Remove and Install: Install

  1. Install new push clips (x2) onto the LH side rail trim.
  2. Make sure that the side rail tethers are undamaged, and at the correct positions on the LH side rail.
  3. Hook the side rail trim tethers (x2) on the side rail trim, and then position the side rail trim on the vehicle.

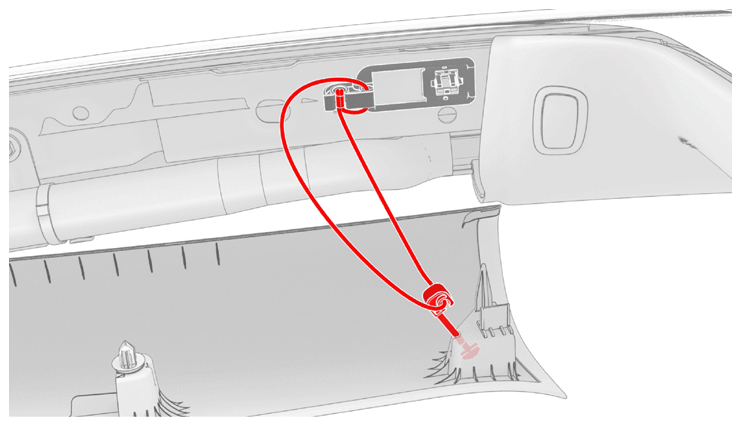

    G14740905Courtesy of TESLA, INC.

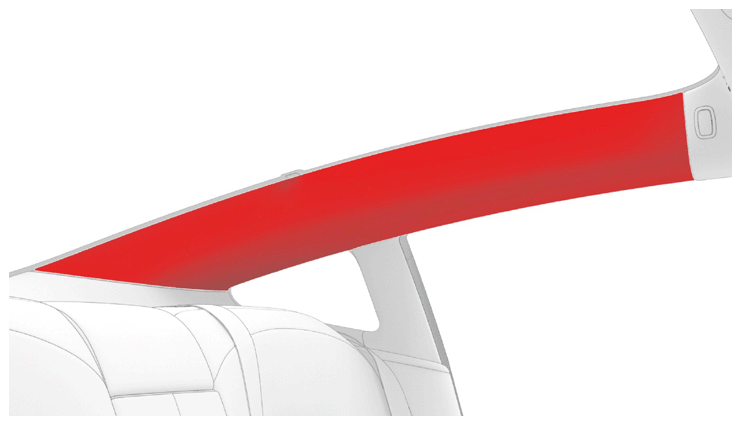

    G14740906Courtesy of TESLA, INC.
  4. Firmly fasten the push clips that attach the LH side rail trim to the LH side rail.

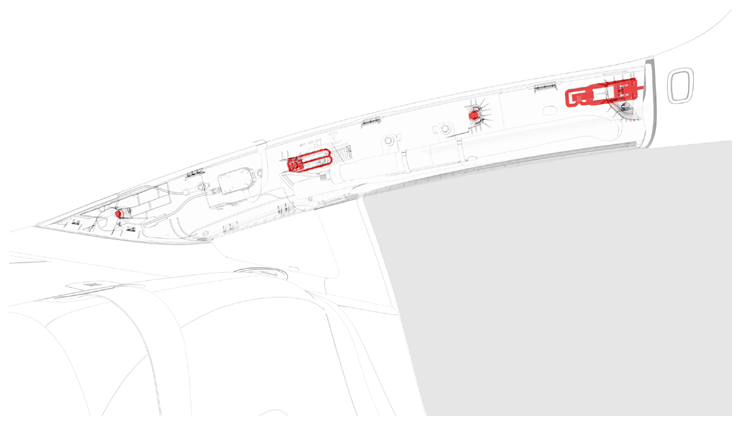

    G14740907Courtesy of TESLA, INC.
    NOTE: Fasten the top clip first near the coat hanger, and work towards the trunk.
    IMPORTANT: Make sure each clip makes an audible snap as they engage with the side rail. If there is no audible snap, the clip has not properly attached. Remove the side rail trim, inspect the clips, replace any damaged clips, and then re-install the trim.
