Trim - Sill - Trunk - Remove and Replace: Install

  1. Align the trunk latch with the slot in the trunk sill trim, align the long tabs (x2) with the slots on the trunk lid, and then press down on the trim to attach all remaining clips and tabs.

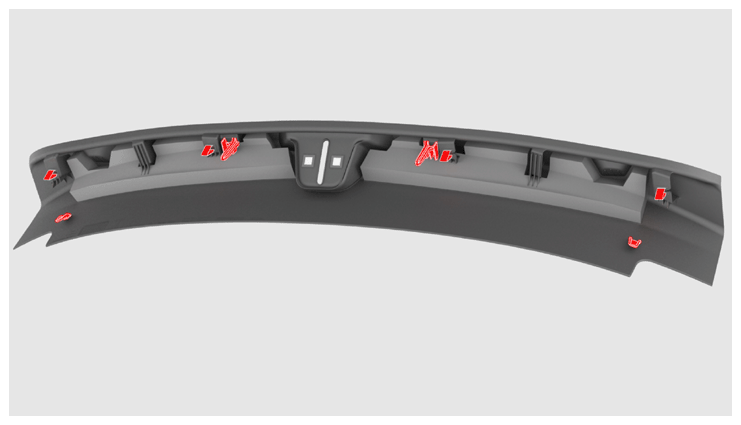

    G14741110Courtesy of TESLA, INC.

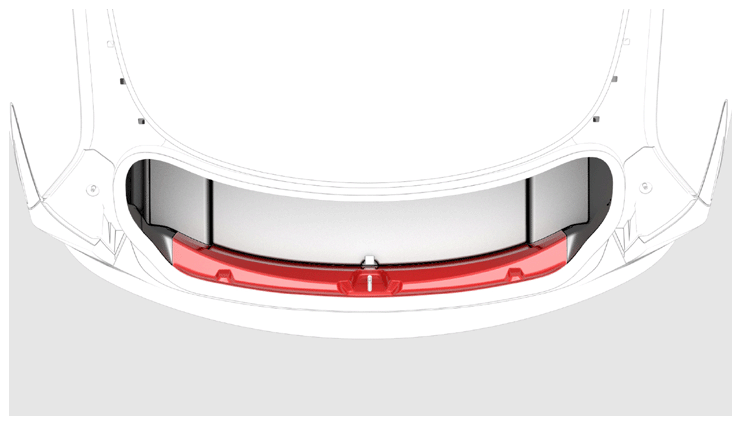

    G14741111Courtesy of TESLA, INC.
    NOTE: Make sure that the trunk seal overlaps the trunk sill trim.
  2. Install the trunk floor trim. See TRIM - FLOOR - TRUNK (REMOVE AND REPLACE) .
