Light - Side Repeater - Front - LH - Remove and Replace: Remove

WARNING: Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration  .
  1. Open the LH front door and lower the LH front window.
  2. Enable Service Mode by using the touchscreen. See Service Mode .
  3. Apply protective tape to the LH front fender around the LH front side repeater light.

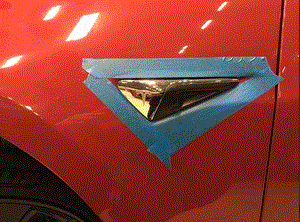

    G00662092Courtesy of TESLA INC
  4. Release the clips (x2) at the bottom of the LH front side repeater light that attach the light to the LH front fender, and then separate the light from the fender.
    CAUTION: If reinstalling the same side repeater, take care not to damage the mounting tabs.
    NOTE: Carefully push the side repeater upwards and pry the bottom out to release it from fender. The number of clips may vary.

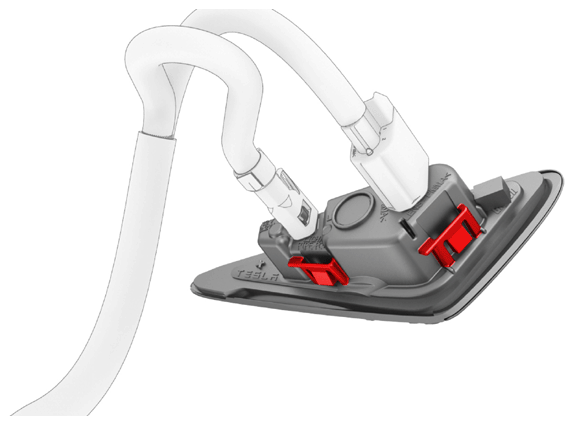

    G14744299Courtesy of TESLA, INC.
  5. Disconnect the electrical harness from the LH front side repeater light connectors (x2), and then remove the light from the vehicle.
    G00622816Courtesy of TESLA, INC.

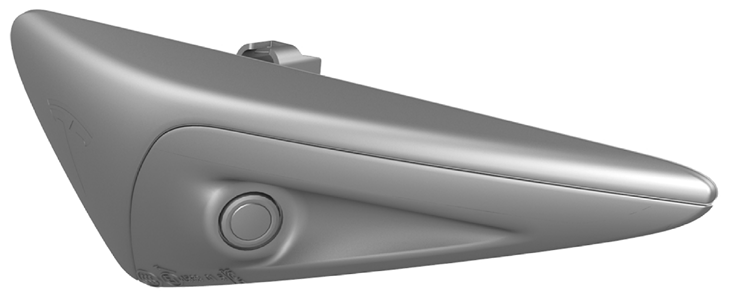

    G14744300Courtesy of TESLA, INC.
