- Remove and secure the customer's belongings from the glove box, if needed.
- Remove the main instrument panel decor trim. See the appropriate Service Information
.
- Open the glove box.

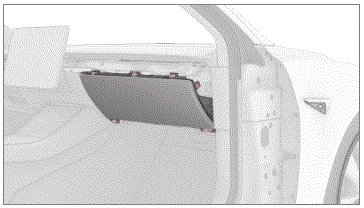

- Remove the screws that attach the glove box to the IP carrier.
NOTE:
One screw may be inside the glove box and not visible in the following image.
NOTE:
LHD shows, RHD similar
 Courtesy of TESLA, INC.
|

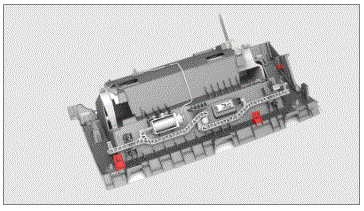

- Release the clips that attach the glove box to the IP carrier.
 Courtesy of TESLA, INC.
|

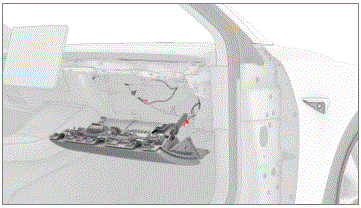

- Disconnect the electrical harness from the glove box solenoid connector, the damper connector, and the puddle light connector.
NOTE:
2 of the electrical connectors are accessed from the bottom of the instrument panel.
NOTE:
LHD shows, RHD similar
 Courtesy of TESLA, INC.
|

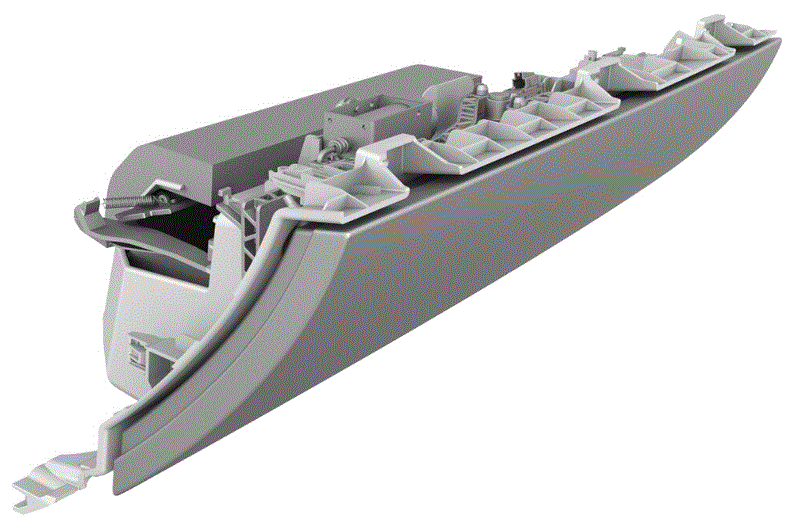

- Remove the glove box from the vehicle.
NOTE:
LHD shows, RHD similar
 Courtesy of TESLA, INC.
|
