Glove Box (With Knee Airbags (Non-Heat Pump)) - Remove and Replace: Remove

Remove and secure the customer's belongings from the glove box, if needed.
Remove the 2nd row lower seat cushion. See SEAT CUSHION - LOWER - 2ND ROW (REMOVE AND REPLACE) .
Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
Disconnect 12V power. See 12V/LV POWER (DISCONNECT AND CONNECT) .
Remove the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
Remove the RH middle A-pillar trim. See TRIM - A-PILLAR - MIDDLE - LH (REMOVE AND REPLACE) .
Remove the RH lower A-pillar trim. See TRIM - A-PILLAR - LOWER - LH (REMOVE AND REPLACE) .
Remove the passenger footwell cover. See COVER - FOOTWELL - PASSENGER (LHD) (REMOVE AND REPLACE) .
Remove the front passenger knee airbag. See AIRBAG - KNEE - FRONT PASSENGER (REMOVE AND REPLACE) .
Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .

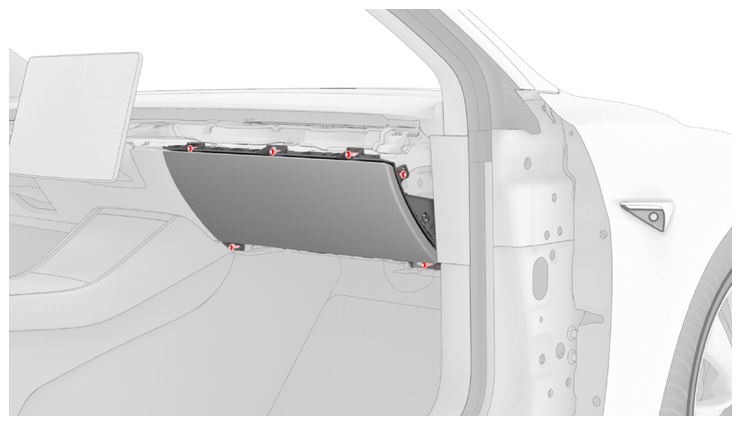

Remove the screws (x6) that attach the glove box to the IP carrier.
NOTE:
Use of the following tools is recommended:
- Torx T20 socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 4 in extension
Courtesy of TESLA, INC.

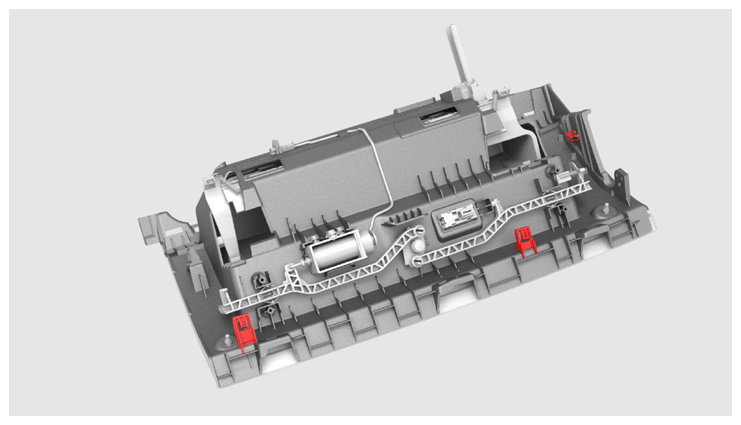

Release the clips that attach the glove box to the IP carrier.

Courtesy of TESLA, INC.

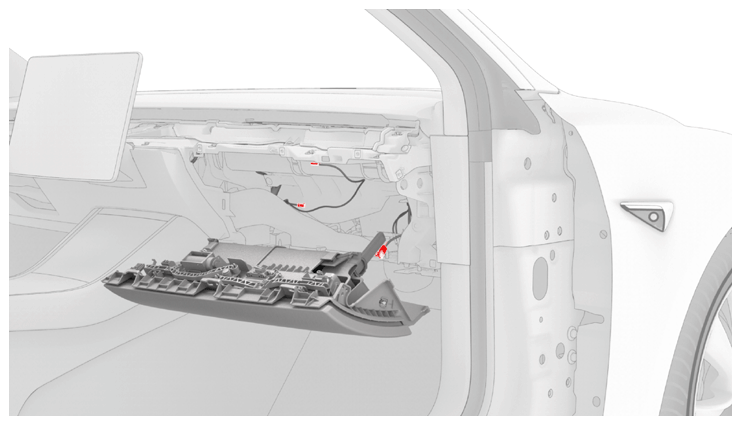

Disconnect the electrical harness from the glove box solenoid connector, the damper connector, and the puddle light connector.
NOTE: 2 of the electrical connectors are accessed from the bottom of the instrument panel.

Courtesy of TESLA, INC.

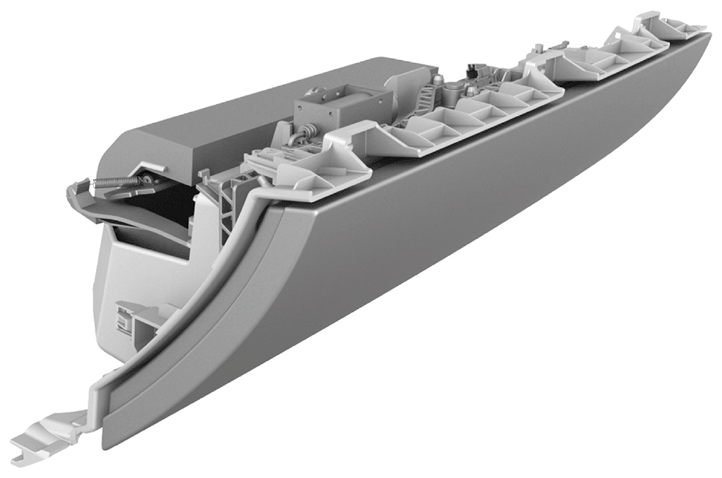

Remove the glove box from the vehicle.

Courtesy of TESLA, INC.
