Brake Controls - Wiring Diagram (Shanghai: 06/16/2021 - 11/11/2021)

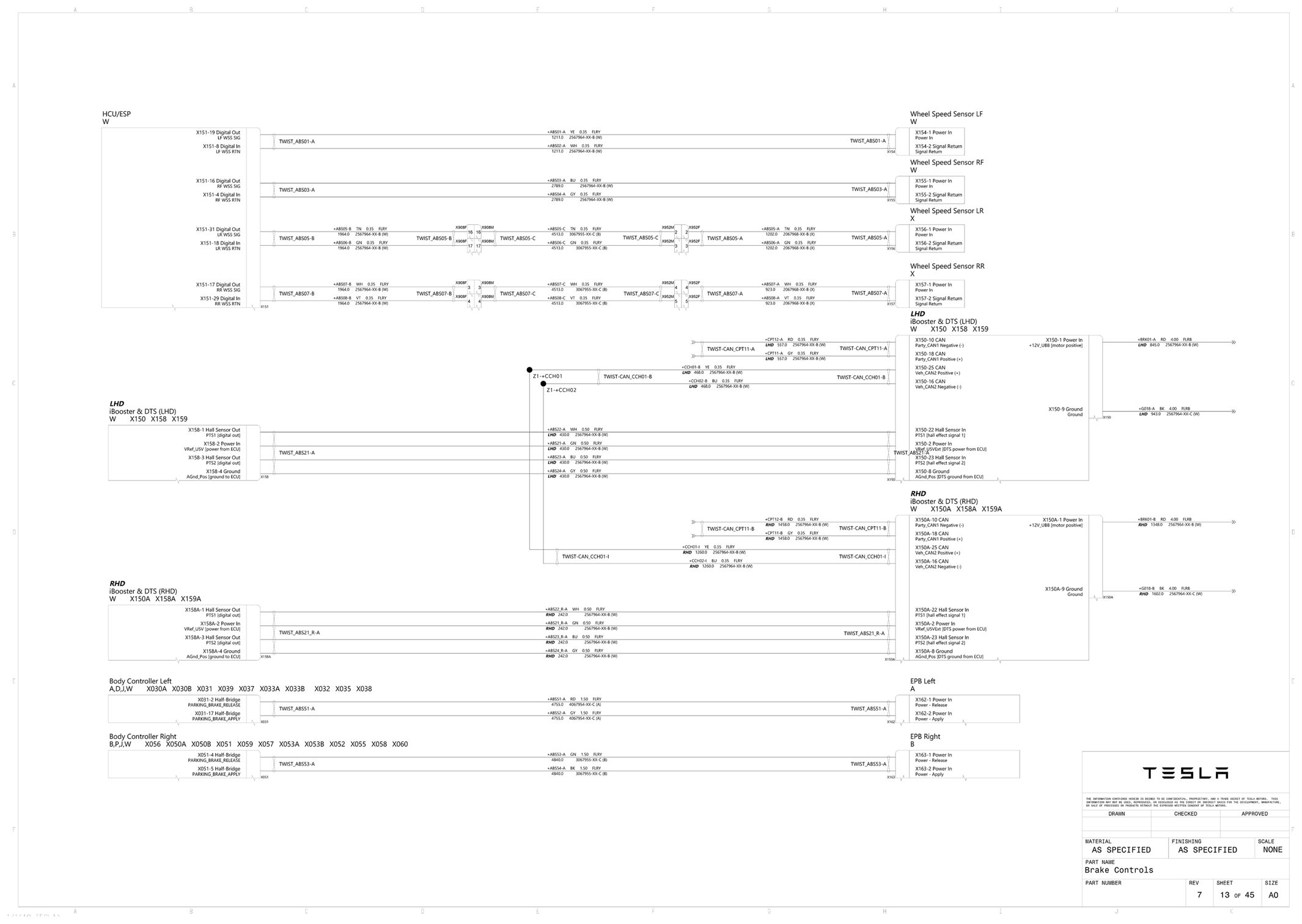

Fig 1: Brake Controls - Wiring Diagram (Shanghai: 06/16/2021 - 11/11/2021)

G16612205

Courtesy of TESLA, INC.
