Security Controls - Wiring Diagram (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

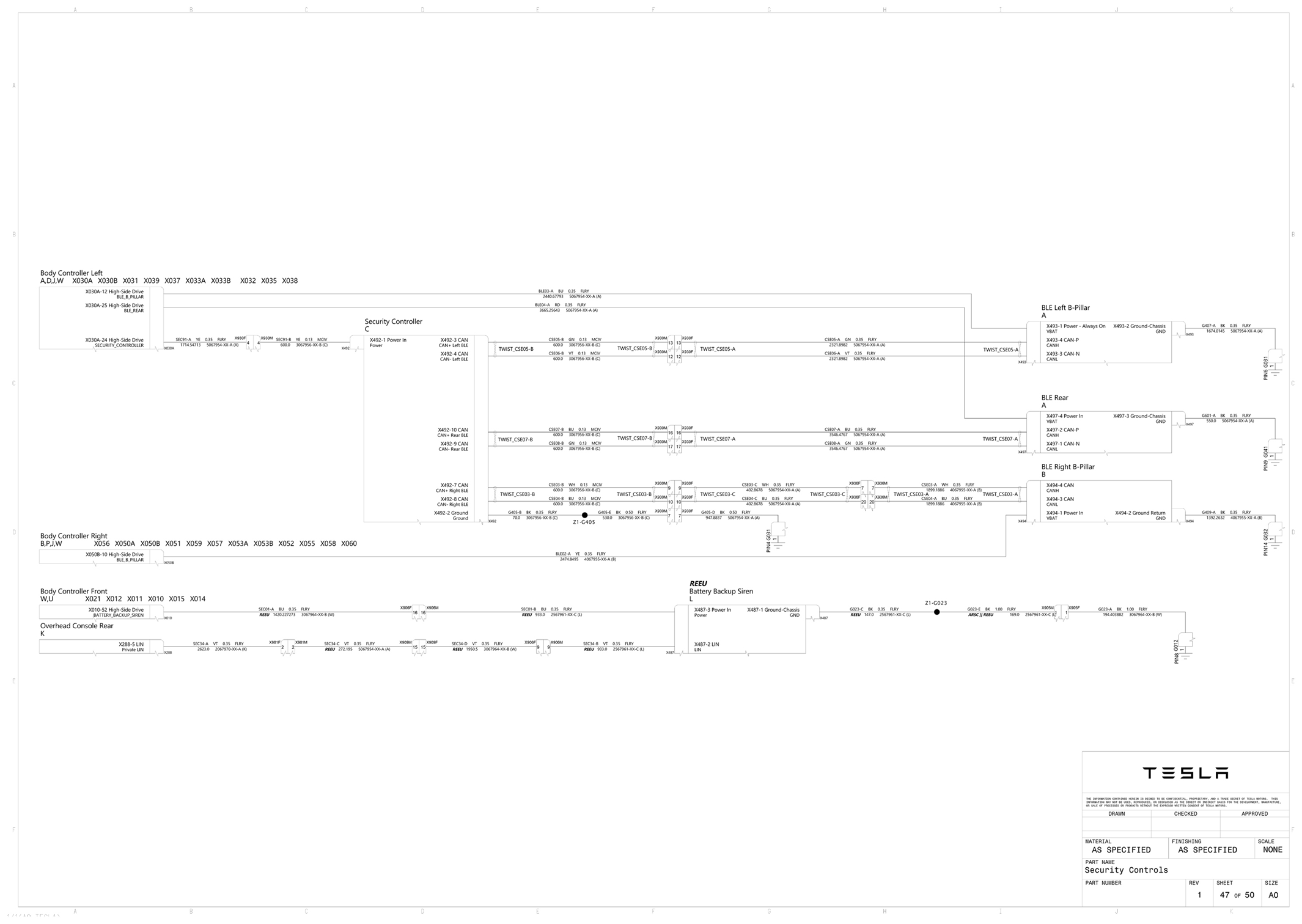

Fig 1: Security Controls - Wiring Diagram (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612188Courtesy of TESLA, INC.
