Connector End View - X981M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042620-02-A
Connector SUMITOMO 6098-5620
Color BU
Connector Location:

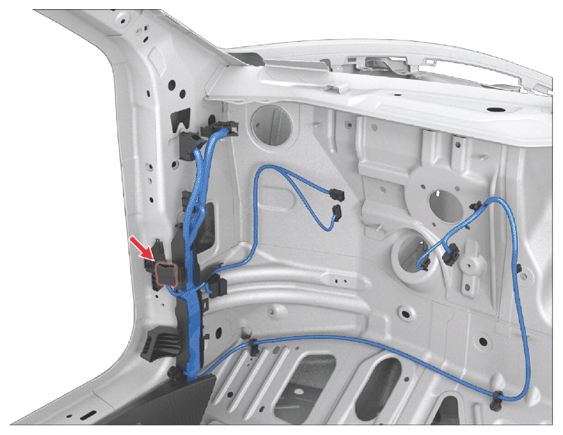

Fig 1: Connector Component Location - X981M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

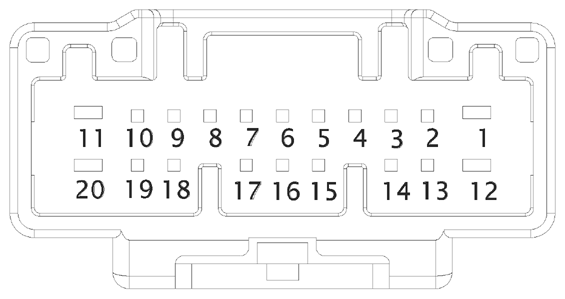

Fig 2: Connector End View - X981M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X909M | 15 | ||
| 3 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.50 | X936F | 5 | ||
| 4 | SUMITOMO | 8100-3623 | 0.64x0.64M | GY | 0.50 | X936F | 19 | ||
| 5 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.50 | X936F | 11 | ||
| 6 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.50 | X936F | 23 | ||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X936F | 12 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X936F | 24 | ||
| 9 | SUMITOMO | 8100-3623 | 0.64x0.64M | TN | 0.35 | X935F | 9 | ||
| 10 | SUMITOMO | 8100-3623 | 0.64x0.64M | RD | 0.35 | X935F | 10 | ||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | SUMITOMO | 8100-3623 | 0.64x0.64M | BK | 0.35 | X030B | 6 | ||
| 17 | unused | ||||||||
| 18 | SUMITOMO | 8100-3623 | 0.64x0.64M | BN | 0.35 | X030A | 6 | ||
| 19 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X030A | 26 | ||
| 20 | SUMITOMO | 8230-4925 | 1.5x0.6M | BK | 0.35 | G031 | 14 | ||
