Connector End View - X962M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042577-00-A
Connector SUMITOMO 6098-3869
Color WH
Connector Location:

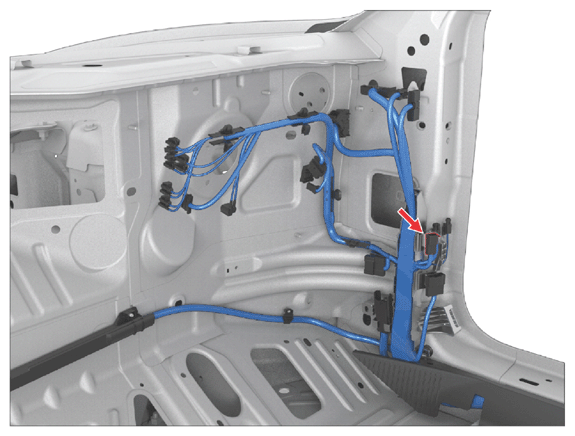

Fig 1: Connector Component Location - X962M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X962M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3623 | 0.64x0.64M | YE | 0.35 | X051 | 26 | ||
| 2 | SUMITOMO | 8100-3623 | 0.64x0.64M | WH | 0.35 | X050A | 28 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | SUMITOMO | 8100-3623 | 0.64x0.64M | VT | 0.35 | X051 | 7 | ||
| 8 | SUMITOMO | 8100-3623 | 0.64x0.64M | GN | 0.35 | X051 | 12 | ||
| 9 | SUMITOMO | 8100-3623 | 0.64x0.64M | BK | 0.35 | X050A | 27 | ||
| 10 | unused | ||||||||
