Connector End View - X955M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1584380-00-A
Connector AMP 1703874-1
Color BK
Connector Location:

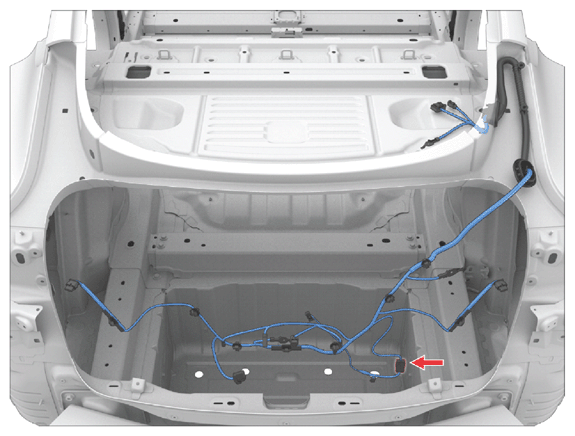

Fig 1: Connector Component Location - X955M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X955M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1-928918-1 | 0.63x0.63M | WH | 0.35 | X348 | 3 | ||
| 2 | AMP | 1-928918-1 | 0.63x0.63M | BU | 0.35 | X348 | 1 | ||
| 3 | AMP | 1-928918-1 | 0.63x0.63M | BK | 0.35 | X348 | 2 | ||
| 4 | AMP | 1-928918-1 | 0.63x0.63M | VT | 0.35 | X592 | 1 | ||
| 5 | AMP | 1-928918-1 | 0.63x0.63M | BK | 0.35 | X592 | 2 | ||
| 6 | unused | ||||||||
