Connector End View - X954F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042621-01-A
Connector SUMITOMO 6098-5625
Color BK
Connector Location:

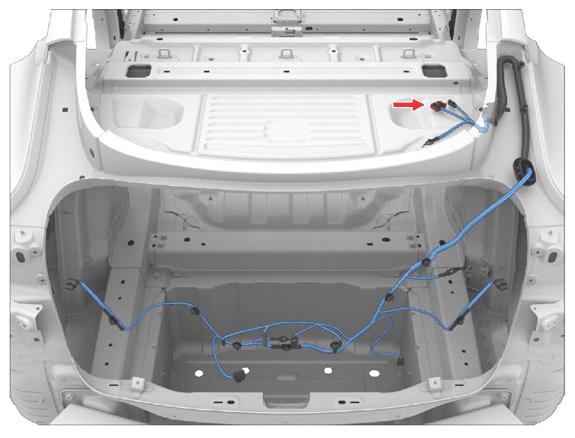

Fig 1: Connector Component Location - X954F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X954F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X271 | 2 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE/BK | 0.35 | X271A | 4 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | ||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/DB | 0.35 | X271 | 3 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | DB | 0.35 | X273 | 3 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/BK | 0.35 | X273 | 2 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD/BK | 0.35 | X273A | 4 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT/DB | 0.35 | X955F | 4 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X955F | 5 | ||
| 11 | SUMITOMO | 8240-0213 | 1.5x0.64F | RD | 1.00 | X340 | 5 | ||
| 12 | unused | ||||||||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH/BK | 0.35 | X340 | 1 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU/BK | 0.35 | X347 | 1 | ||
| 15 | unused | ||||||||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X340 | 2 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X340 | 6 | ||
| 18 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X955F | 1 | ||
| 19 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X955F | 2 | ||
| 20 | SUMITOMO | 8240-0213 | 1.5x0.64F | GN | 1.00 | X340 | 4 | ||
