Connector End View - X950M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1754743-00-A
Connector MOLEX 33482-7015
Color GY
Connector Location:

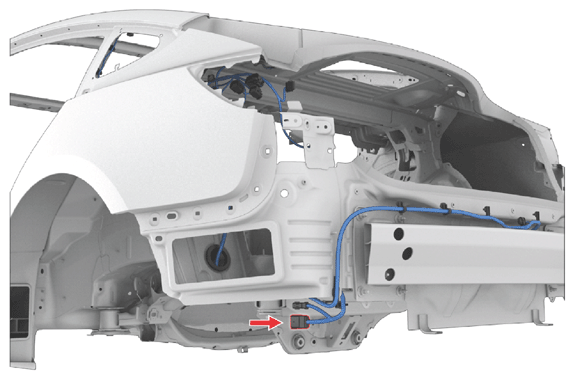

Fig 1: Connector Component Location - X950M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

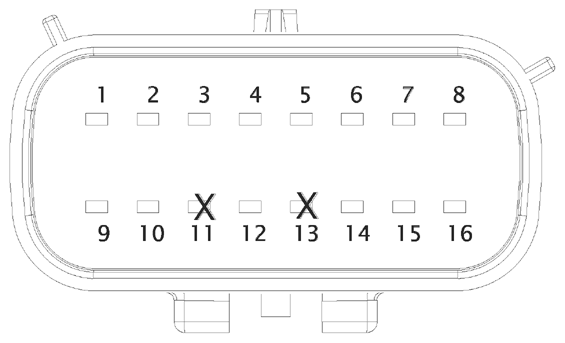

Fig 2: Connector End View - X950M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X167 | 6 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | GY | 0.35 | TESLA | MAT-120-240 | X167 | 5 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X167 | 4 |
| 4 | MOLEX | 33000-0004 | 1.5x0.8M | YE/LTBU | 0.35 | TESLA | MAT-120-240 | X031 | 13 |
| 5 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X031 | 14 |
| 6 | MOLEX | 33000-0004 | 1.5x0.8M | BU | 0.35 | TESLA | MAT-120-240 | X030A | 21 |
| 7 | MOLEX | 33000-0004 | 1.5x0.8M | YE | 0.35 | TESLA | MAT-120-240 | X030A | 8 |
| 8 | MOLEX | 33000-0004 | 1.5x0.8M | WH | 0.35 | TESLA | MAT-120-240 | X030A | 20 |
| 9 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.35 | TESLA | MAT-120-240 | X030A | 27 |
| 10 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X031 | 21 |
| 11 | unused | ||||||||
| 12 | MOLEX | 33000-0001 | 1.5x0.8M | BK | 1.50 | TESLA | MAT-120-240 | G041 | 7 |
| 13 | unused | ||||||||
| 14 | MOLEX | 33000-0004 | 1.5x0.8M | BN | 0.35 | TESLA | MAT-120-240 | X167 | 1 |
| 15 | MOLEX | 33000-0004 | 1.5x0.8M | GN | 0.35 | TESLA | MAT-120-240 | X167 | 2 |
| 16 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X167 | 3 |
