Connector End View - X949M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1086735-00-A
Connector AMP 1-1703506-1
Color BK
Connector Location:

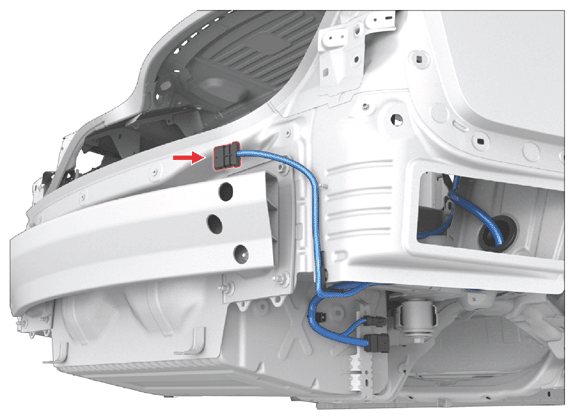

Fig 1: Connector Component Location - X949M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

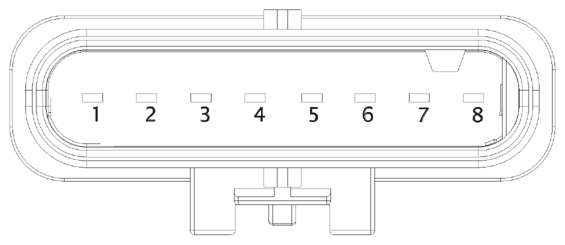

Fig 2: Connector End View - X949M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1718758-1 | 1.2X0.6MS | RD | 0.35 | AMP | 967067-2 | X051 | 45 |
| 2 | AMP | 1718758-1 | 1.2X0.6MS | WH | 0.35 | AMP | 967067-2 | X050A | 5 |
| 3 | AMP | 1718758-1 | 1.2X0.6MS | YE | 0.35 | AMP | 967067-2 | X050A | 17 |
| 4 | AMP | 1718758-1 | 1.2X0.6MS | GN | 0.35 | AMP | 967067-2 | X050A | 3 |
| 5 | AMP | 1718758-1 | 1.2X0.6MS | VT | 0.35 | AMP | 967067-2 | X050A | 16 |
| 6 | AMP | 1718758-1 | 1.2X0.6MS | TN | 0.35 | AMP | 967067-2 | X050A | 15 |
| 7 | AMP | 1718758-1 | 1.2X0.6MS | GY | 0.35 | AMP | 967067-2 | X050A | 4 |
| 8 | AMP | 1718758-1 | 1.2X0.6MS | BK | 0.35 | AMP | 967067-2 | X051 | 44 |
