Connector End View - X949F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1085032-00-A
Connector AMP 1-1719393-1
Color BK
Connector Location:

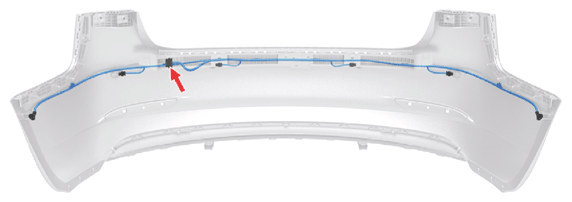

Fig 1: Connector Component Location - X949F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

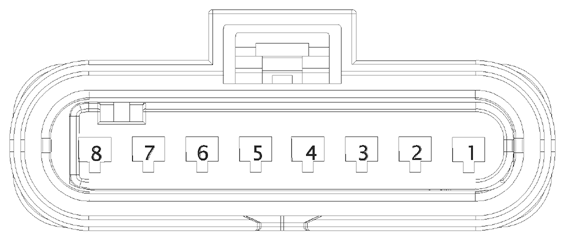

Fig 2: Connector End View - X949F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | ||
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | WH | 0.35 | AMP | 967067-2 | X142 | 2 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X145 | 2 |
| 4 | AMP | 7-1452665-1 | 1.2x0.6FS | GN | 0.35 | AMP | 967067-2 | X143 | 2 |
| 5 | AMP | 7-1452665-1 | 1.2x0.6FS | VT | 0.35 | AMP | 967067-2 | X140 | 2 |
| 6 | AMP | 7-1452665-1 | 1.2x0.6FS | BU | 0.35 | AMP | 967067-2 | X144 | 2 |
| 7 | AMP | 7-1452665-1 | 1.2x0.6FS | GY | 0.35 | AMP | 967067-2 | X141 | 2 |
| 8 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 |
