Connector End View - X936M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1048098-03-A

Connector YAZAKI 7286-1918-90

Color BU

Connector Location:

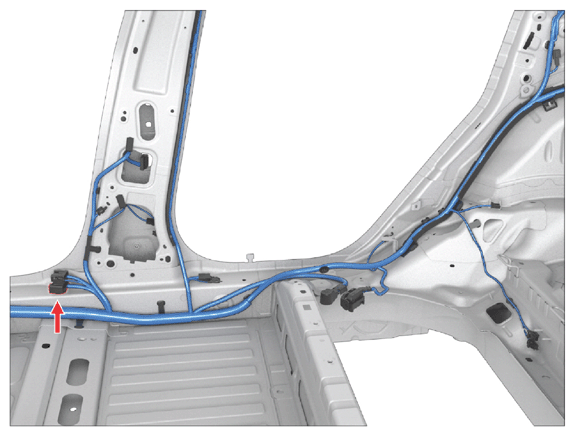

Fig 1: Connector Component Location - X936M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X936M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00	X561	7
2	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35	X167A	6
3	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X168A	2
4	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50	X171A	3
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50	X175A	7
6	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35	X167A	5
7	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X494	4
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X167A	4
9	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X167A	1
10	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35	X051	14
11	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50	X171A	7
12	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X563	7
13	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X098	11
14	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50	X560	2
15	SUMITOMO	8230-4923	1.5x0.6M	WH	2.00	X561	8
16	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X167A	2
17	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X098	10
18	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50	X171A	4
19	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50	X175A	8
20	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35	X494	3
21	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X167A	3
22	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X051	30
23	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50	X171A	8
24	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X563	8
25	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X098	13
26	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50	X560	1
