Connector End View - X935M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1097117-00-A

Connector DELPHI 33245685

Color WH

Connector Location:

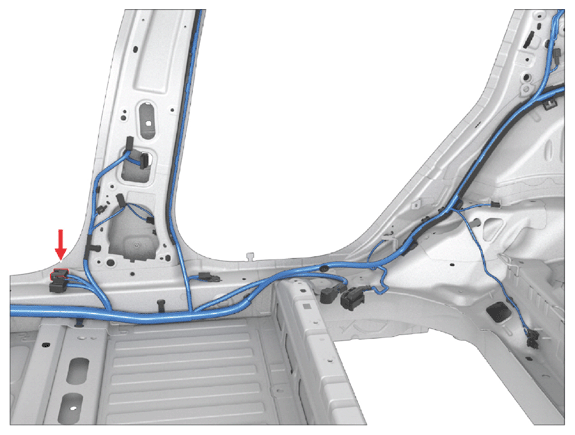

Fig 1: Connector Component Location - X935M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X935M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X098	7
2	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35	X098	6
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X207	1
4	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X207	2
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X209	1
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35	X209	2
7	unused
8	unused
9	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X175A	16
10	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35	X175A	15
11	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35	X675	2
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35	X218	1
13	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X218	2
14	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X222	1
15	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X222	2
16	unused
17	unused
18	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35	X220	1
19	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X220	2
20	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X675	1
21	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35	X226	2
22	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X226	1
