Connector End View - X935F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1097116-00-A

Connector DELPHI 33245684

Color WH

Connector Location:

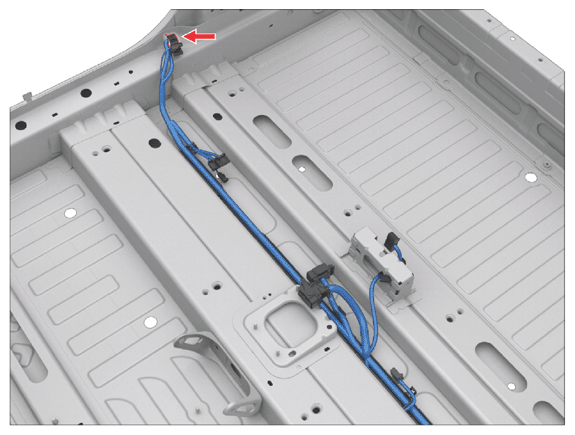

Fig 1: Connector Component Location - X935F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X935F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X096	8
2	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X096	7
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X201	38
4	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X201	37
5	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X201	51
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X201	52
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X981M	9
10	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X981M	10
11	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X039	8
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X201	16
13	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X201	15
14	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X201	1
15	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X201	2
16	unused
17	unused
18	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X201	19
19	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X201	20
20	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X030A	19
21	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X201	10
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X201	9
