Connector End View - X930M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1048098-03-A

Connector YAZAKI 7286-1918-90

Color BU

Connector Location:

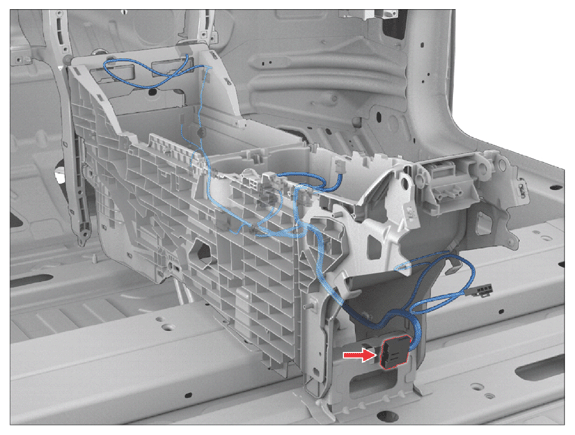

Fig 1: Connector Component Location - X930M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X930M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00	X197	A
2	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X293	2
3	unused
4	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13	X492	1
5	unused
6	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X694	A
7	SUMITOMO	8100-3623	0.64x0.64M	BK	0.50
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X294	2
9	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X492	7
10	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X492	8
11	unused
12	SUMITOMO	8230-4878	0.64x0.64M	VT	0.13	X492	4
13	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X492	3
14	SUMITOMO	8230-4923	1.5x0.6M	BK	2.00	X195B	A
15	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00	X195B	D
16	SUMITOMO	8230-4878	0.64x0.64M	BU	0.13	X492	10
17	SUMITOMO	8230-4878	0.64x0.64M	GN	0.13	X492	9
18	SUMITOMO	8230-4878	0.64x0.64M	YE	0.13	X492	6
19	SUMITOMO	8230-4878	0.64x0.64M	WH	0.13	X492	5
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8230-4923	1.5x0.6M	BN	2.00	X197	C
